Preliminary steps
▶
"Locating the defective server" on page 43
.
▶
If applicable, "Removing the front cover with lock" on page 45.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 49.
▶
"Locating the defective component" on page 44.
▶
Remove the corresponding riser module, see "Handling riser modules" on
page 62.
Removing the defective riser card
▶
Remove the expansion card, see "Removing the expansion card" on
page 201.

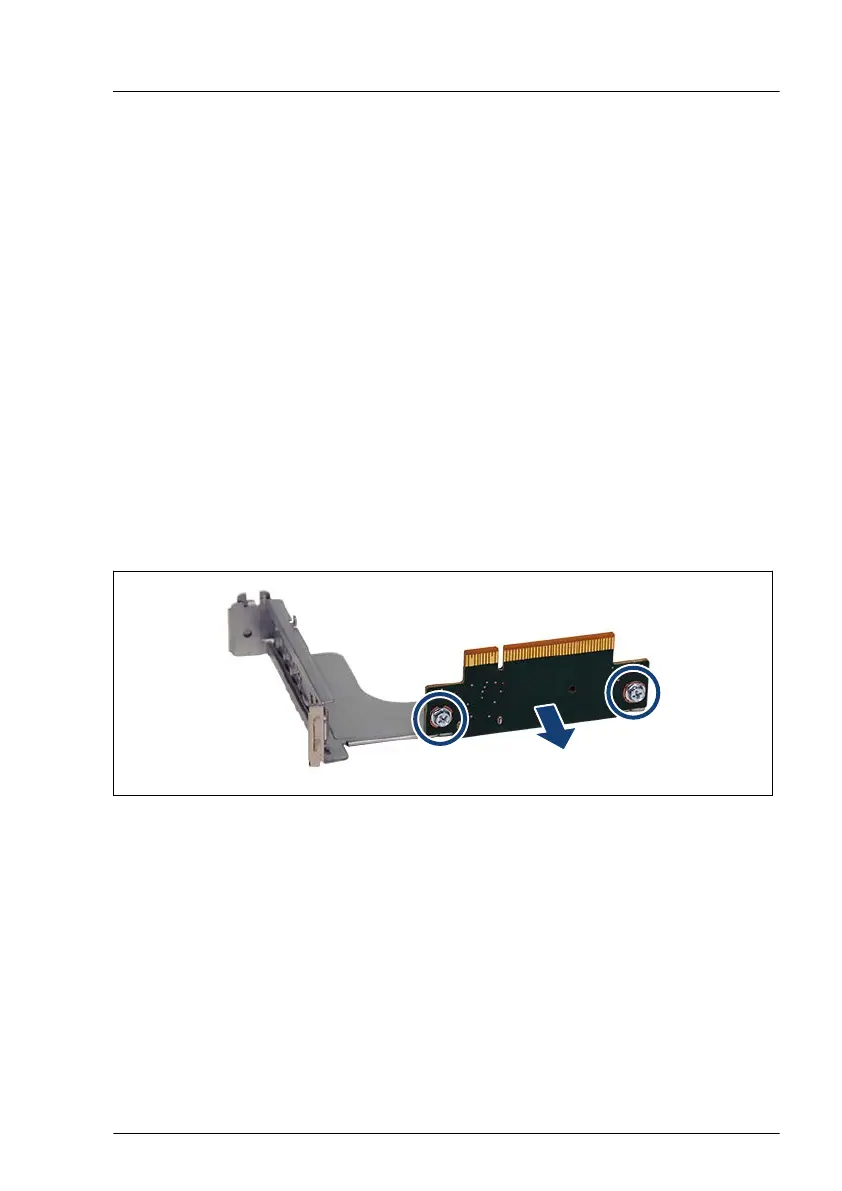

Figure 148: Removing the riser card - example riser module 1
▶
Remove the two screws (see circles).
▶
Remove the riser card.
Expansion cards and backup units
RX1330 M5 Upgrade and Maintenance Manual 205
