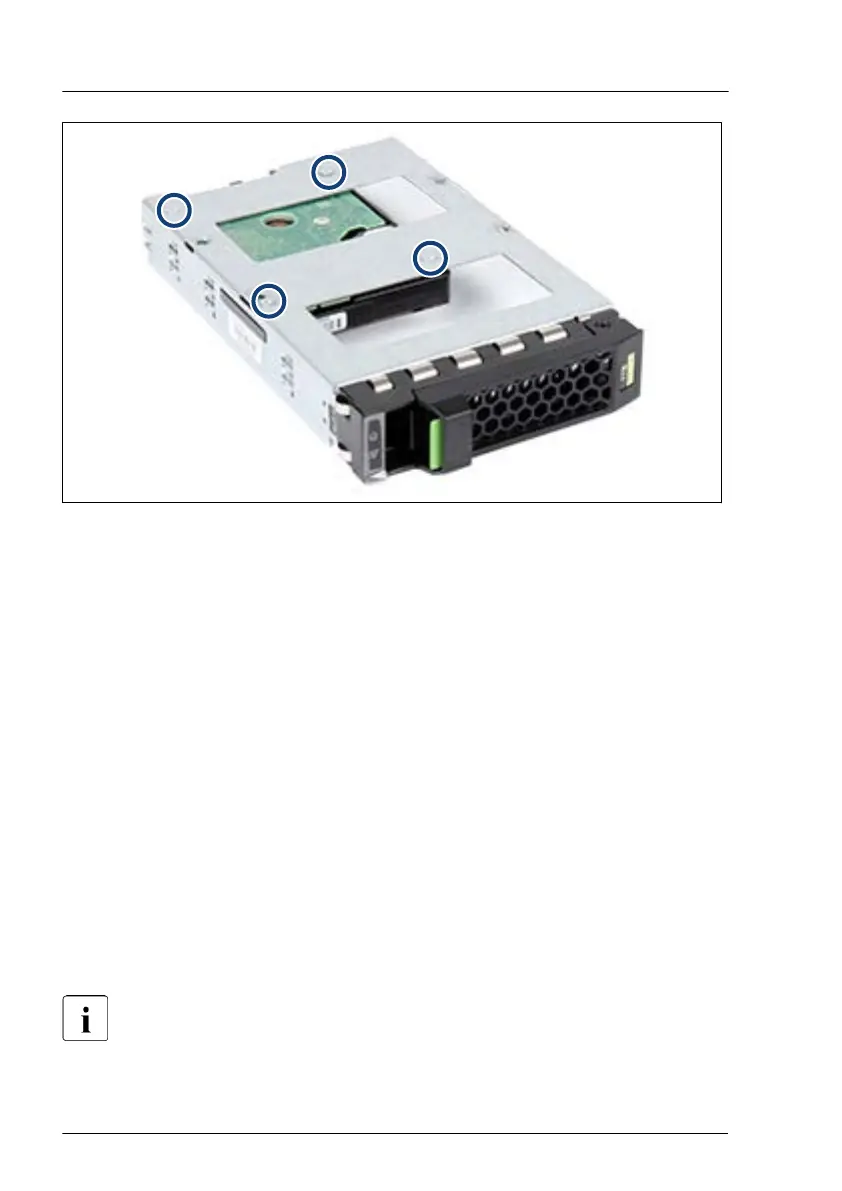

Figure 57: Installing the 2.5-inch HDD/SSD in the 3.5-inch installation frame (B)
▶
Fasten the 2.5-inch HDD/SSD with four screws.
Removing a 2.5-inch HDD/SSD from a 3.5-inch installation frame
▶
Please proceed in reversed order
.
Concluding steps
No steps needed.
7.4
3.5-inch HDD configurations
7.4.1 Overview of configurations
7.4.1.1 Configuration with up to four HDD modules
The HDD bays can be equipped with 3.5-inch HDD modules or 2.5-inch
HDD/SSD modules, see "2.5-inch HDD/SSD and 3.5-inch installation
frame" on page 124
.
Hard disk drive (HDD) / solid state disk (SSD)
126 Upgrade and Maintenance Manual RX1330 M5
