Fujitsu PRIMERGY RX1330 M5

To Next Page

To Previous Page

9RX1330M5S

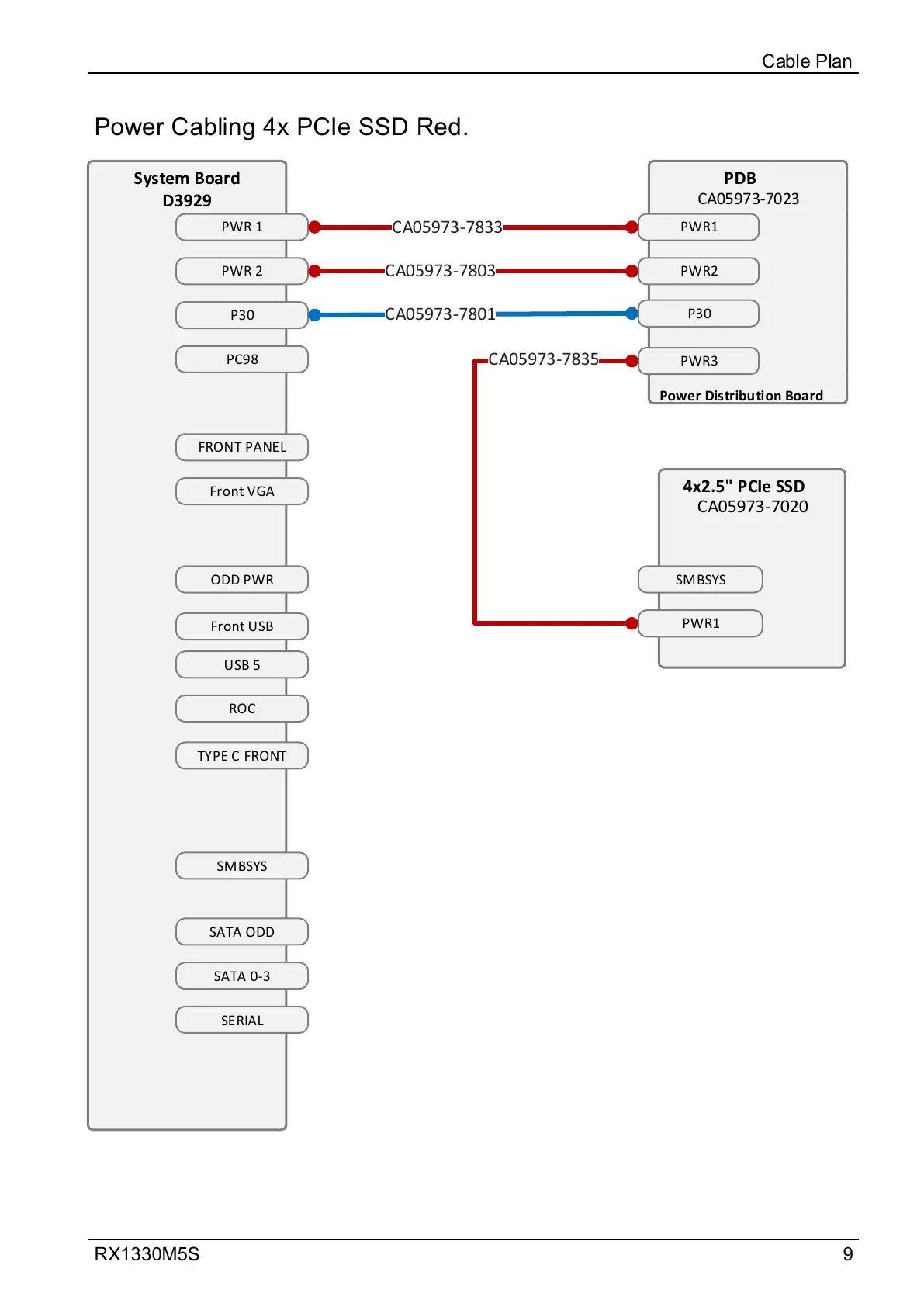

Power Cabling 4x PCIe SSD Red.

Cable Plan

System Board

D3929

PWR 1

P30

PWR 2

TYPE C FRONT

FRONT PANEL

Front USB

USB 5

Front VGA

SMBSYS

SATA ODD

SATA 0-3

SERIAL

PC98

ROC

ODD PWR

PDB

Power Distribution Board

PWR1

PWR2

PWR3

P30

CA05973-7023

CA05973-7833

CA05973-7801

CA05973-7803

4x2.5" PCIe SSD

SMBSYS

PWR1

CA05973-7020
