4.9 Installing the front cover with lock
A
A
B
B

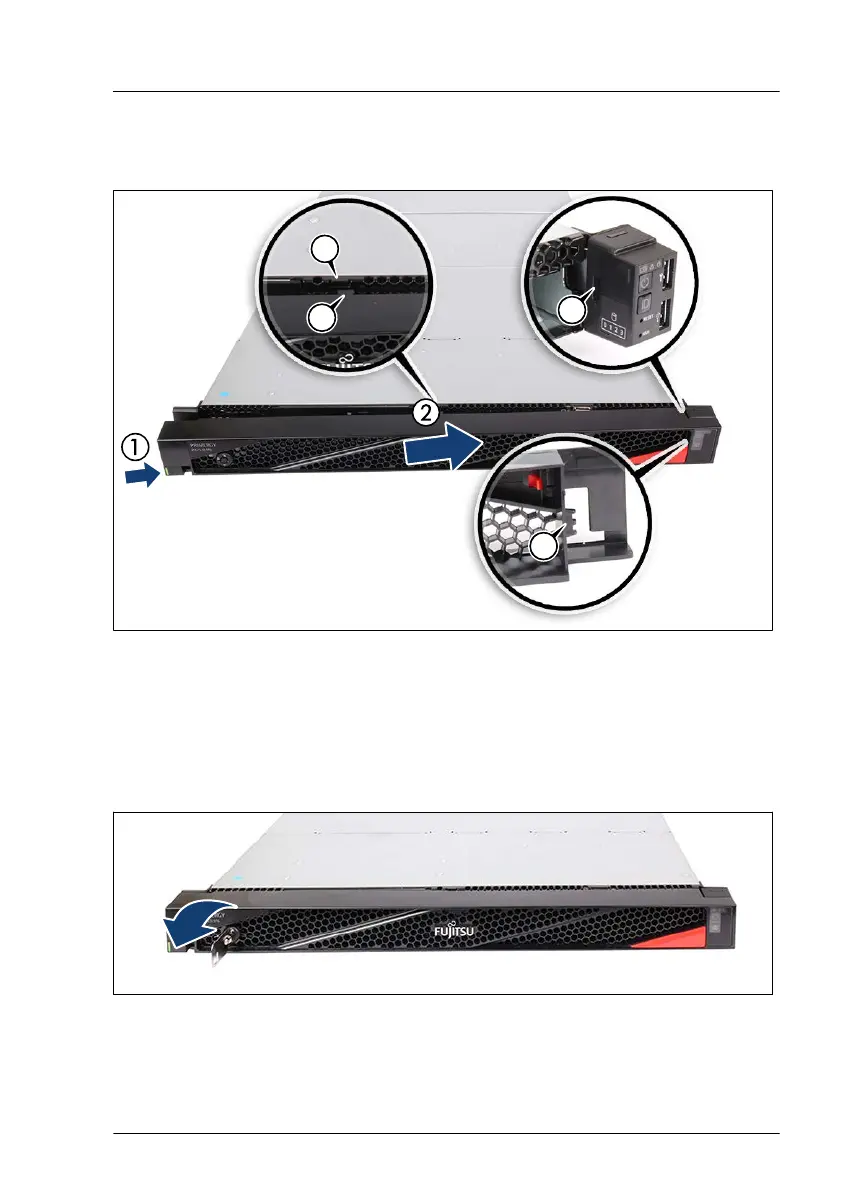

Figure 16: Installing the front cover with lock (A)
▶
Push in the lock on the left side (1) and attach the front cover in a slight
angle to the front (2). Ensure that the noses (A, B) fit in the corresponding
recesses.
▶
Press the front cover in place until the lock clicks in.
Figure 17: Installing the front cover with lock (B)
