Fujitsu PRIMERGY RX1330 M5 User Manual

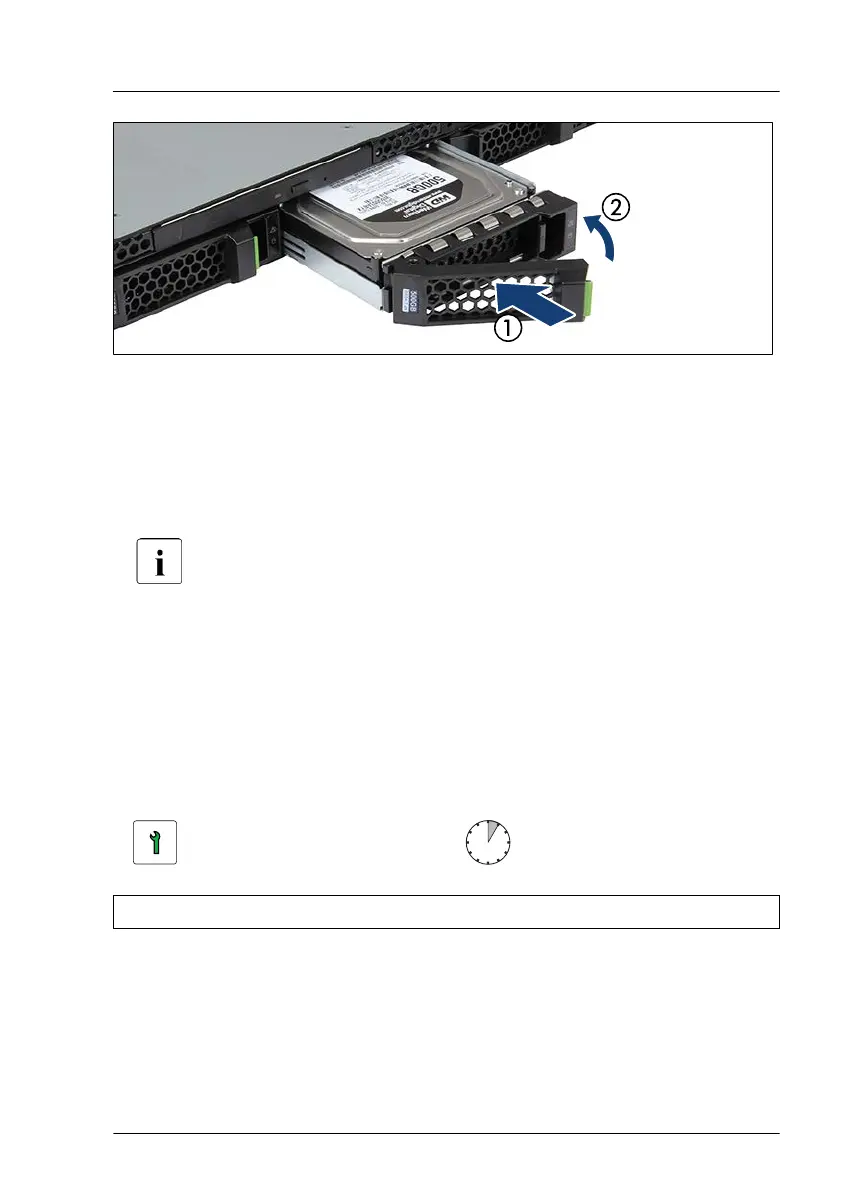

Figure 61: Installing the 3.5-inch HDD module
▶
Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
▶
Close the locking lever to lock the HDD module in place (2).
▶
When using a RAID array
, add the additional HDD to the RAID array
.
Configuring the RAID array, refer to the documentation of the RAID
controller, used in your configuration, see "Documentation overview"
on page
26.
Concluding steps
▶
If applicable, "Installing the front cover with lock" on page
61
.
7.4.3 Removing 3.5-inch HDD modules
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: tool-less
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 45
.
▶
If the HDD module to be removed is combined into a RAID array, please
proceed as follows:
Hard disk drive (HDD) / solid state disk (SSD)
RX1330 M5 Upgrade and Maintenance Manual 129

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
