4.6.2 Installing the top cover

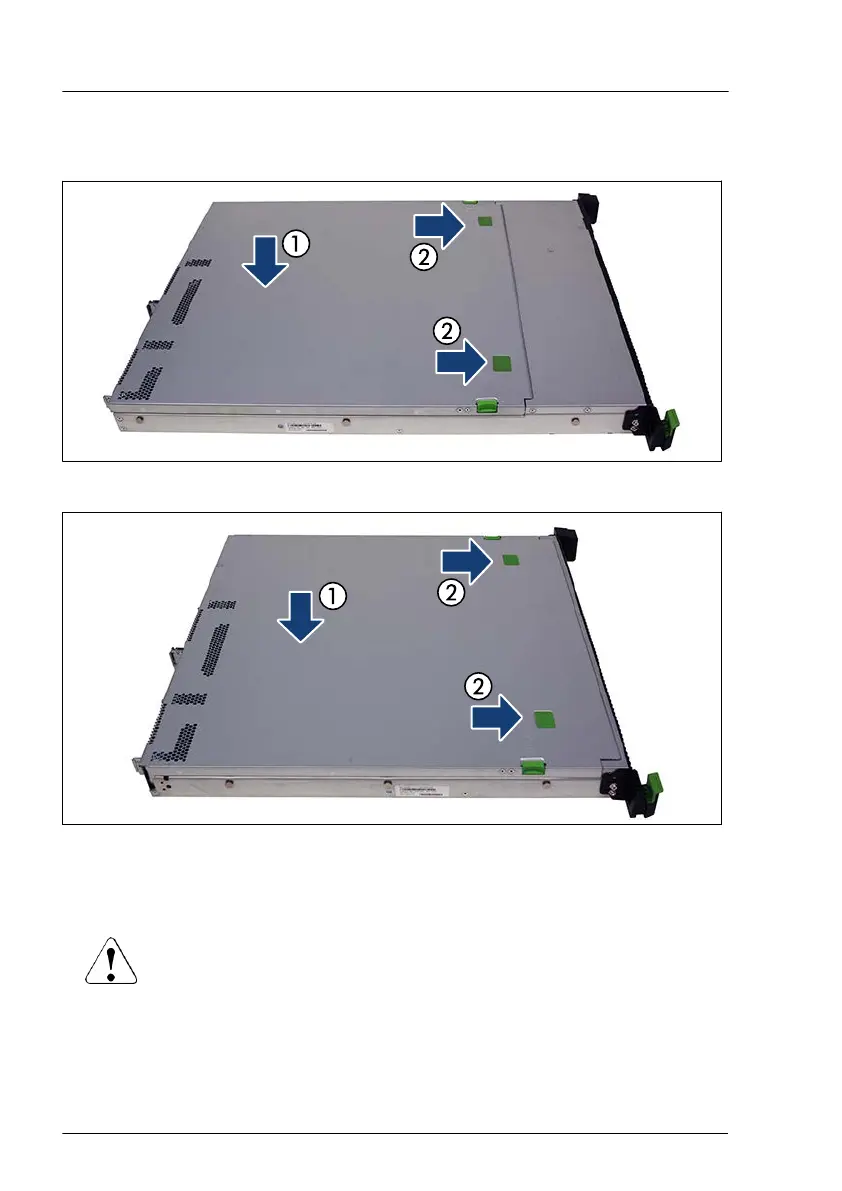

Figure 10: Installing the top cover
Figure 11: Installing the top cover (RX1330 M5S)
▶
Place the top cover in such way that the bolts inside the cant of the cover fit
in the corresponding recesses in the chassis (1).
CAUTION
▶
Take care that all cables are inside the chassis.
▶
Push the top cover to the front side using the green touch points (2).
Basic hardware procedures
54 Upgrade and Maintenance Manual RX1330 M5
