Fujitsu PRIMERGY RX1330 M5

To Next Page

To Previous Page

4.11 Handling the air duct

4.11.1

Removing the air duct

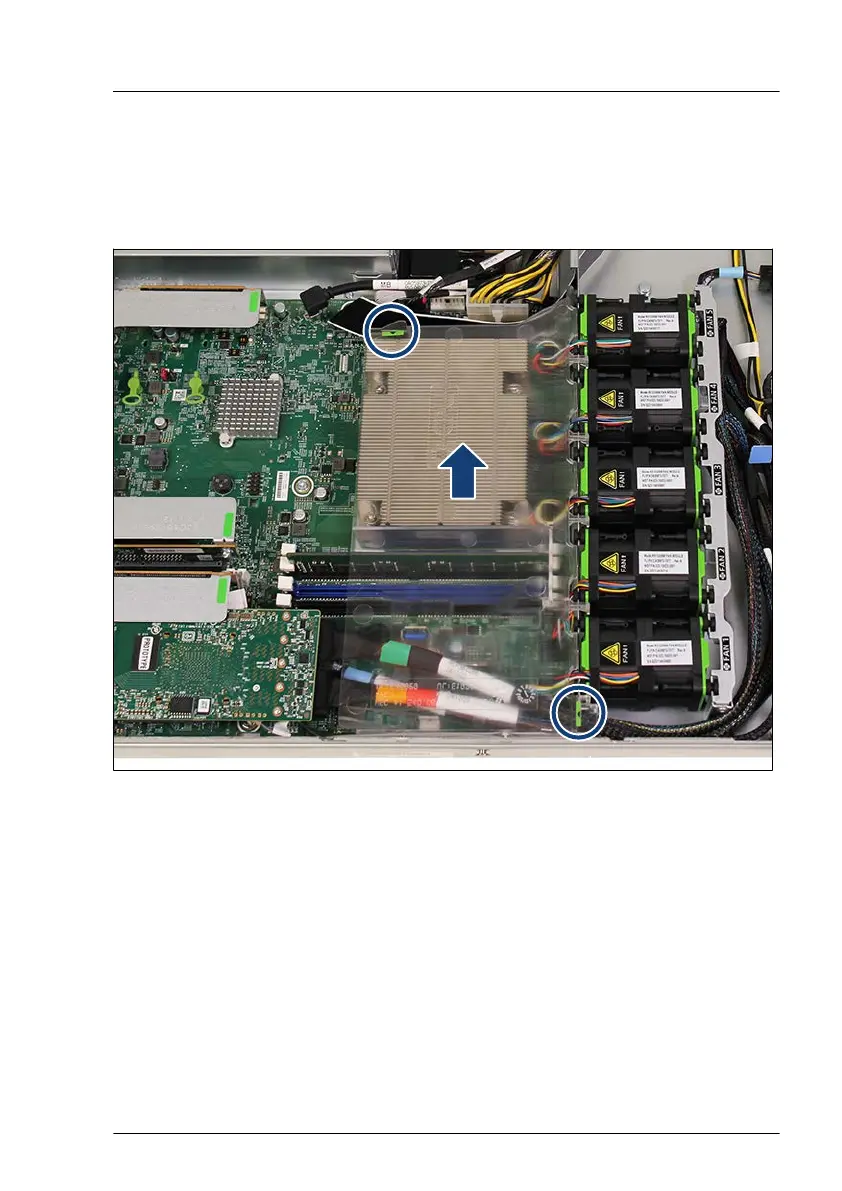

Figure 21: Removing the air duct

▶

Remove the air duct using the two touch points (see circles).

Basic hardware procedures

RX1330 M5 Upgrade and Maintenance Manual 65
