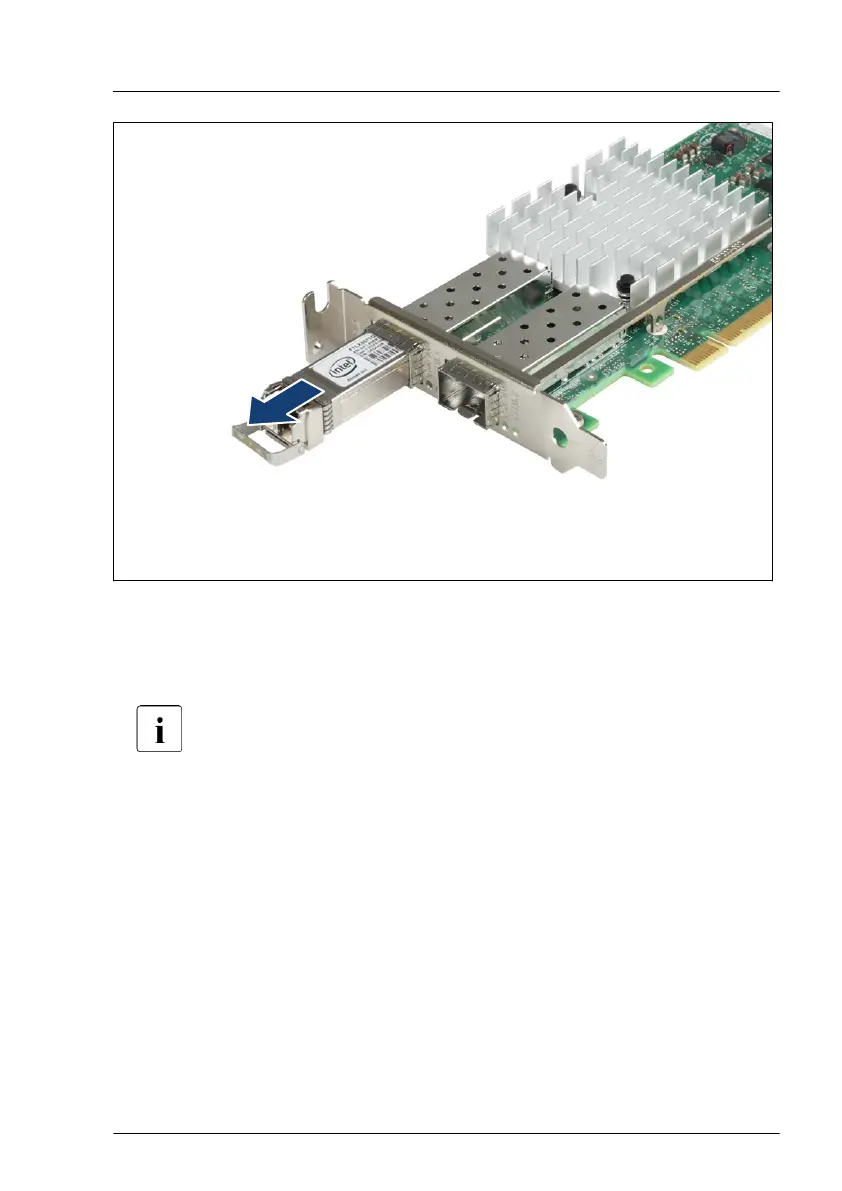

Figure 135: Removing the SFP+ transceiver module
▶
Pull the SFP+ transceiver module out of its socket connector.
▶
Attach the protective cap to the SFP+ transceiver module.
Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
9.5 Expansion cards and riser cards
9.5.1 V
ariants of riser modules
There are four variants available:
–
riser module 1
–
riser module 2
–
riser module 3
Expansion cards and backup units
RX1330 M5 Upgrade and Maintenance Manual 193
