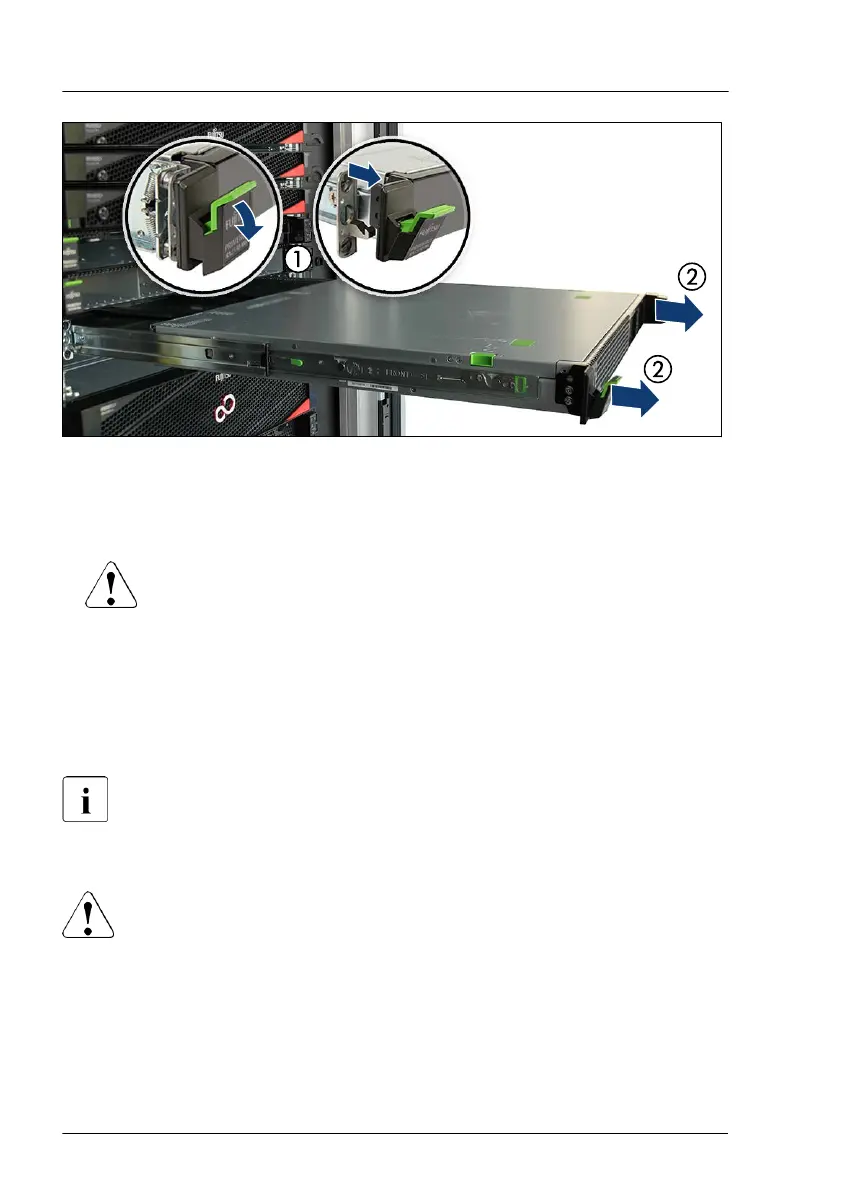

Figure 6: Extending the server out of the rack
Fold down the quick release lever on the left side (1).
Pull the server out of the rack until it locks in place (2).
CAUTION
Do not use the extended server as a surface on which to put
things or as a work surface, and strictly avoid leaning on or
against it.
4.5.3 Removing the server from the rack
In most cases maintenance tasks can be performed while the server is
extended from the rack. However, depending on accessibility or security
guidelines, it may make sense to completely remove the server from the
rack cabinet for maintenance purposes.
CAUTION
At least two people are needed to lift the server out of the rack cabinet.
(For Japan, see " 安全上のご注意".)
Basic hardware procedures
50 Upgrade and Maintenance Manual RX1330 M5
