Fujitsu PRIMERGY RX1330 M5

To Next Page

To Previous Page

16RX1330M5

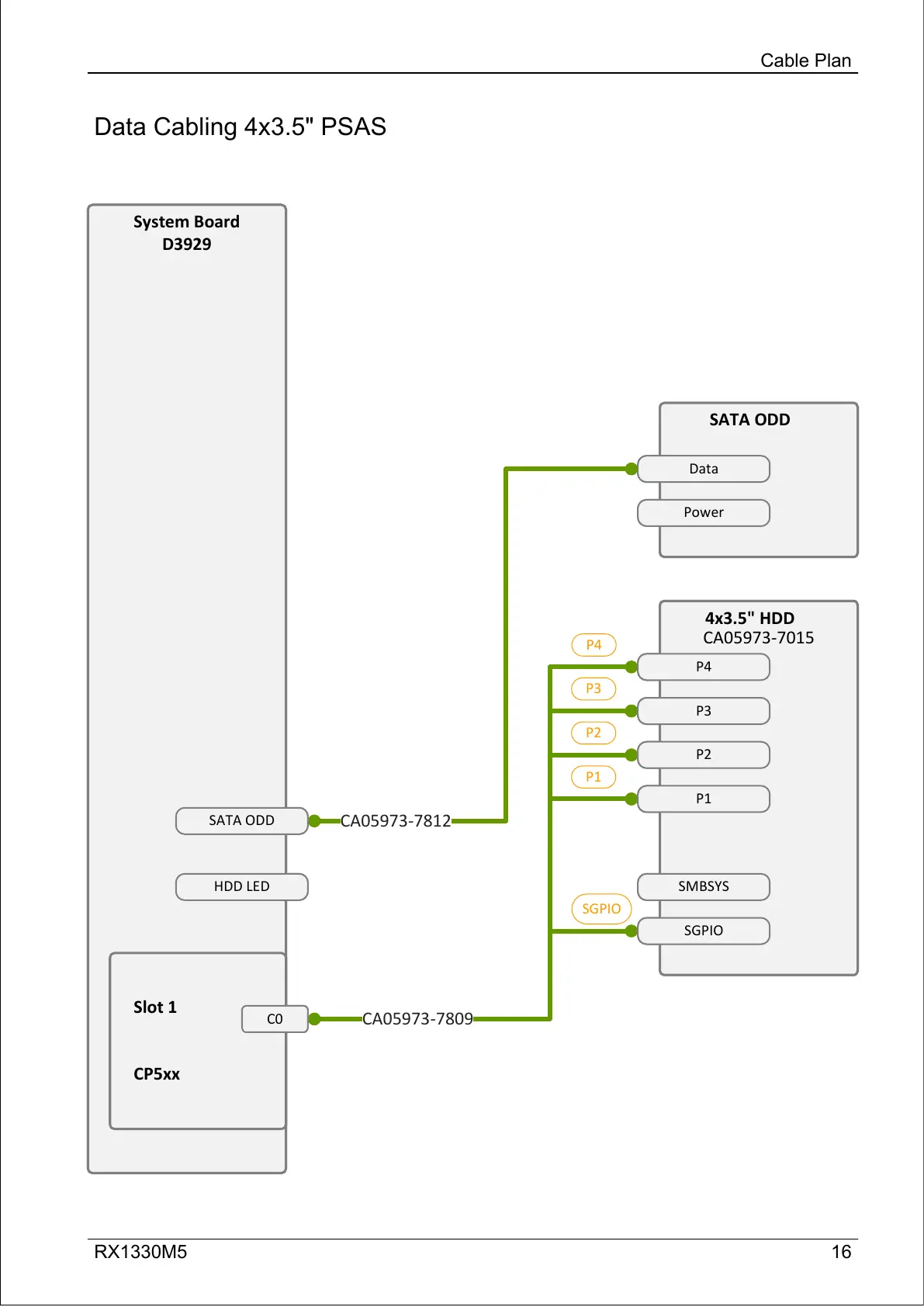

Data Cabling 4x3.5" PSAS

Cable Plan

SATA ODD

Data

Power

SATA ODD

Data

Power

CA05973-7812

CA05973-7809

System Board

D3929

SATA ODD

HDD LED

Slot 1

CP5xx

System Board

D3929

SATA ODD

HDD LED

Slot 1

CP5xx

4x3.5" HDD

SMBSYS

SGPIO

CA05973-7015

4x3.5" HDD

SMBSYS

SGPIO

CA05973-7015
