Fujitsu PRIMERGY RX1330 M5

To Next Page

To Previous Page

12RX1330M5

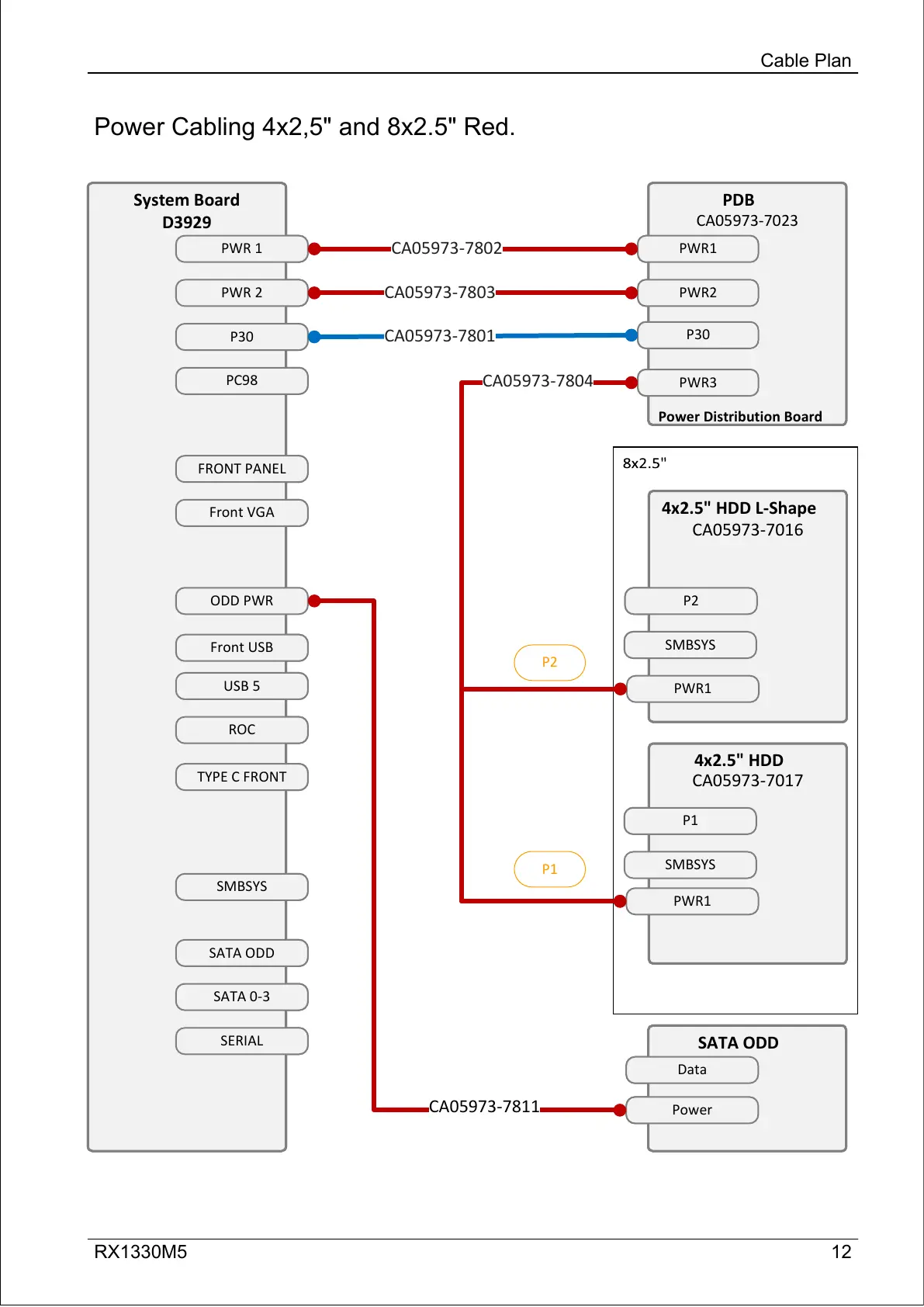

Power Cabling 4x2,5" and 8x2.5" Red.

Cable Plan

System Board

D3929

PWR 1

P30

PWR 2

TYPE C FRONT

FRONT PANEL

Front USB

USB 5

Front VGA

SMBSYS

SATA ODD

SATA 0-3

SERIAL

PC98

ROC

System Board

D3929

PWR 1

P30

PWR 2

TYPE C FRONT

FRONT PANEL

Front USB

USB 5

Front VGA

SMBSYS

SATA ODD

SATA 0-3

SERIAL

PC98

ROC

ODD PWR

4x2.5" HDD L-Shape

SMBSYS

CA05973-7016

4x2.5" HDD L-Shape

SMBSYS

CA05973-7016

4x2.5" HDD

CA05973-7017

4x2.5" HDD

CA05973-7017

PWR1

SATA ODD

Data

Power

SATA ODD

Data

Power

CA05973-7811

PDB

Power Distribution Board

PWR1

PWR2

PWR3

P30

CA05973-7023

PDB

Power Distribution Board

PWR1

PWR2

PWR3

P30

CA05973-7023

SMBSYS

PWR1

CA05973-7802

CA05973-7801

CA05973-7803
