Fujitsu PRIMERGY RX1330 M5

To Next Page

To Previous Page

15RX1330M5S

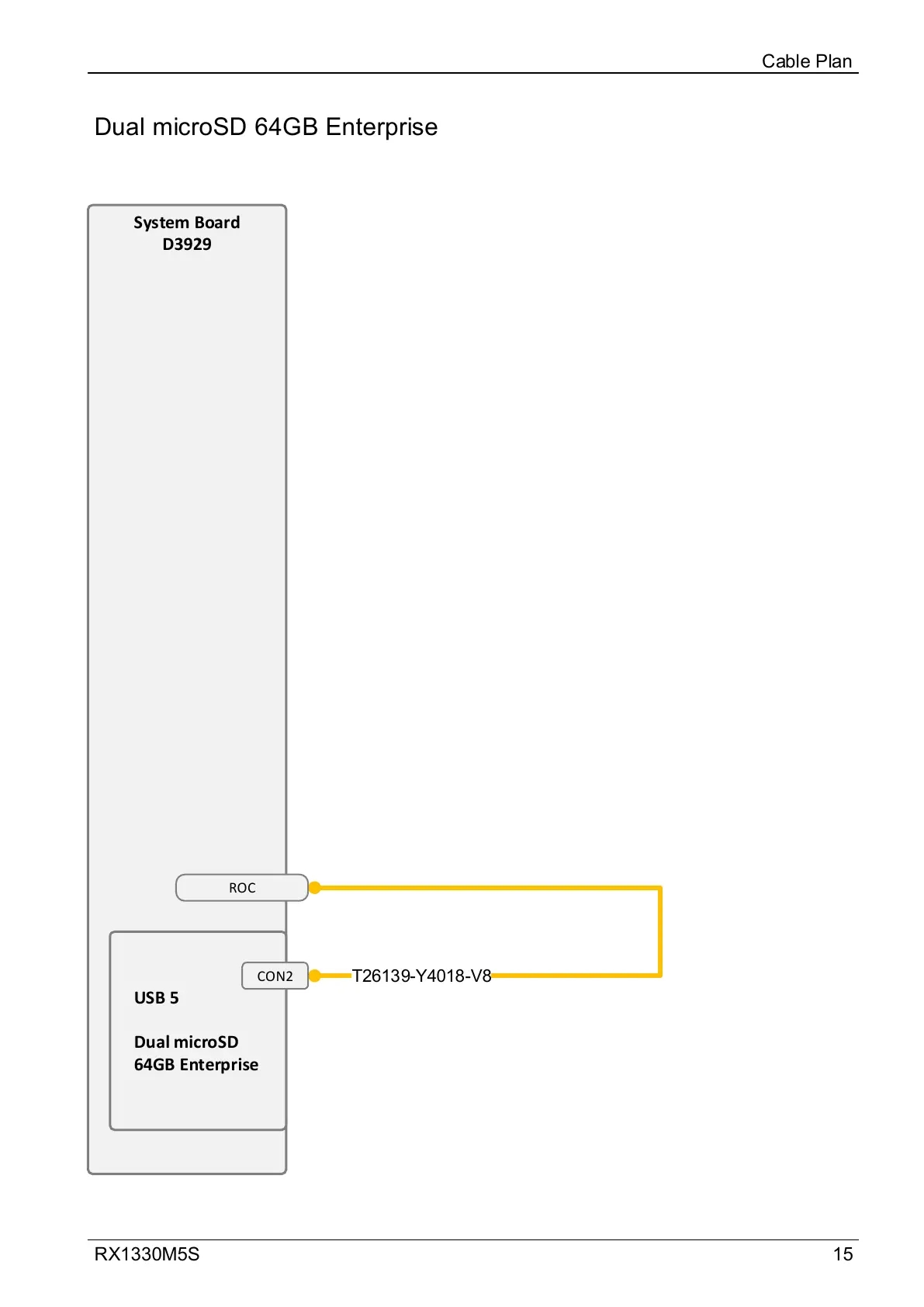

Dual microSD 64GB Enterprise

Cable Plan

T26139-Y4018-V8

System Board

D3929

ROC

USB 5

Dual microSD

64GB Enterprise

CON2
