Installing the slot cover

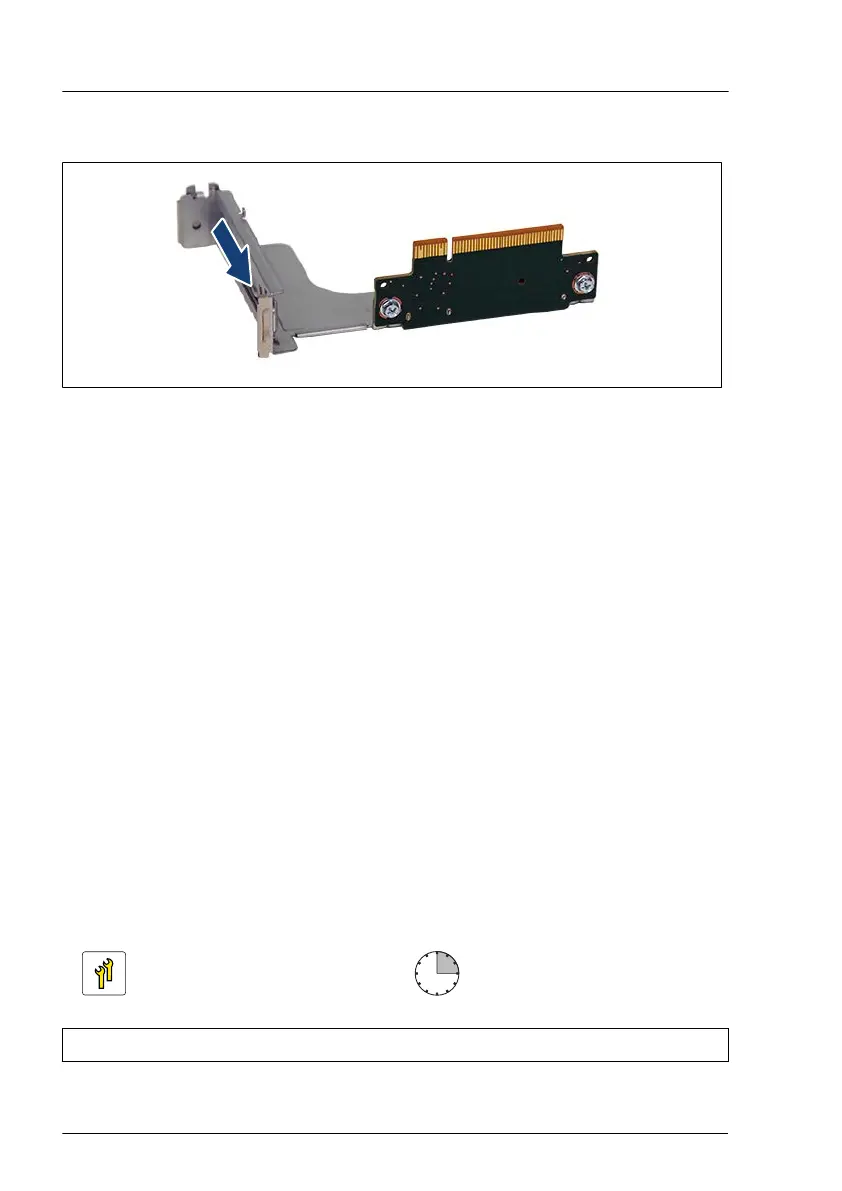

Figure 147: Installing the slot cover - example riser module 1
▶
Insert the slot cover. Make sure that the lug on the slot cover clicks into
place in the corresponding bracket (see circle).
Concluding steps
▶
Install the corresponding riser module, see "Installing a riser module" on
page 64.
▶
"Reassembling" on page
53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
▶
If applicable, update the system information of your server using the Chassis
ID Prom Tool, see "Using the Chassis ID Prom Tool" on page 91.
▶
"Resuming BitLocker functionality" on page 86.
9.5.4 Replacing an expansion card
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Software: 5 minutes
Tools: tool-less
Expansion cards and backup units
