13.4.5 Replacing the front VGA
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: hexagon screw driver 5 mm
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 45
.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 49.
▶
"Removing the air duct" on page 65.
Removing the defective front VGA
▶
Disconnect the front VGA cable from the system board connector "Front
VGA".

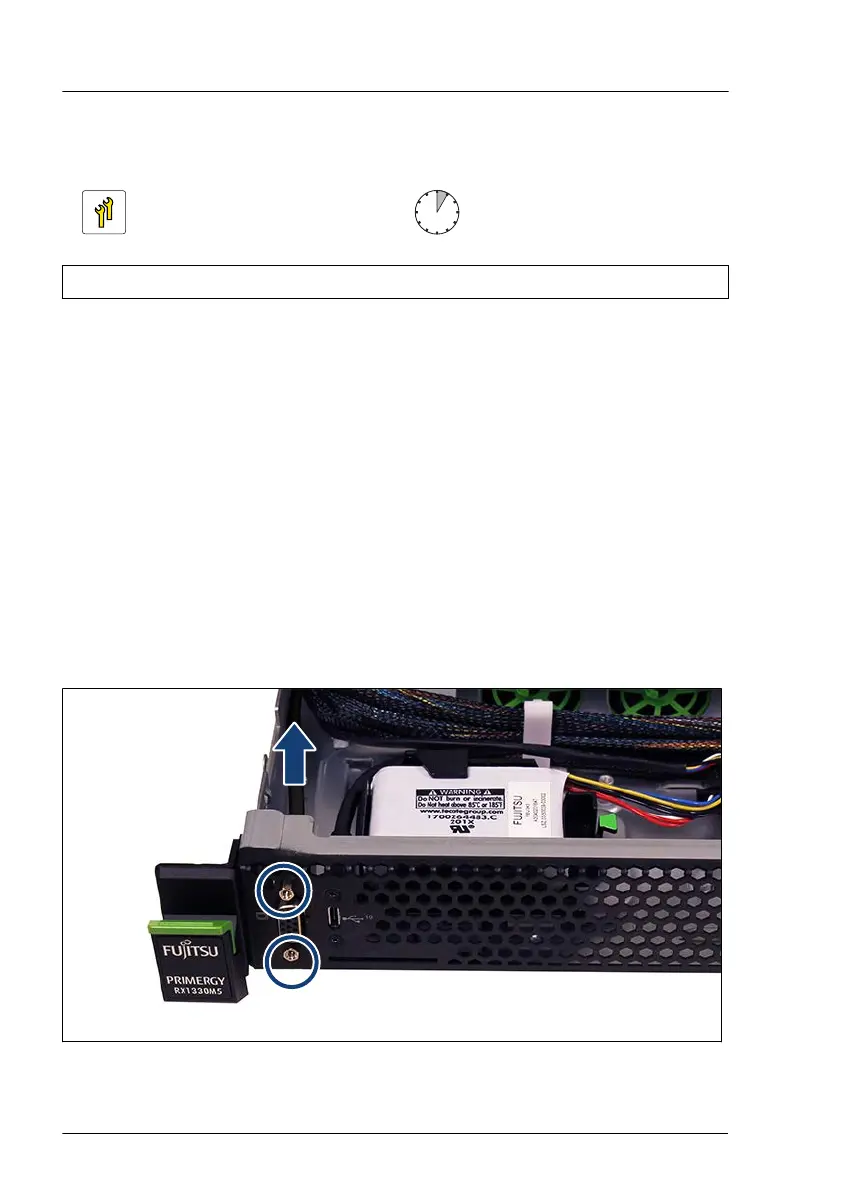

Figure 220: Removing the front VGA cable
Front panel
274 Upgrade and Maintenance Manual RX1330 M5
