Fujitsu PRIMERGY RX1330 M5 User Manual

7RX1330M5

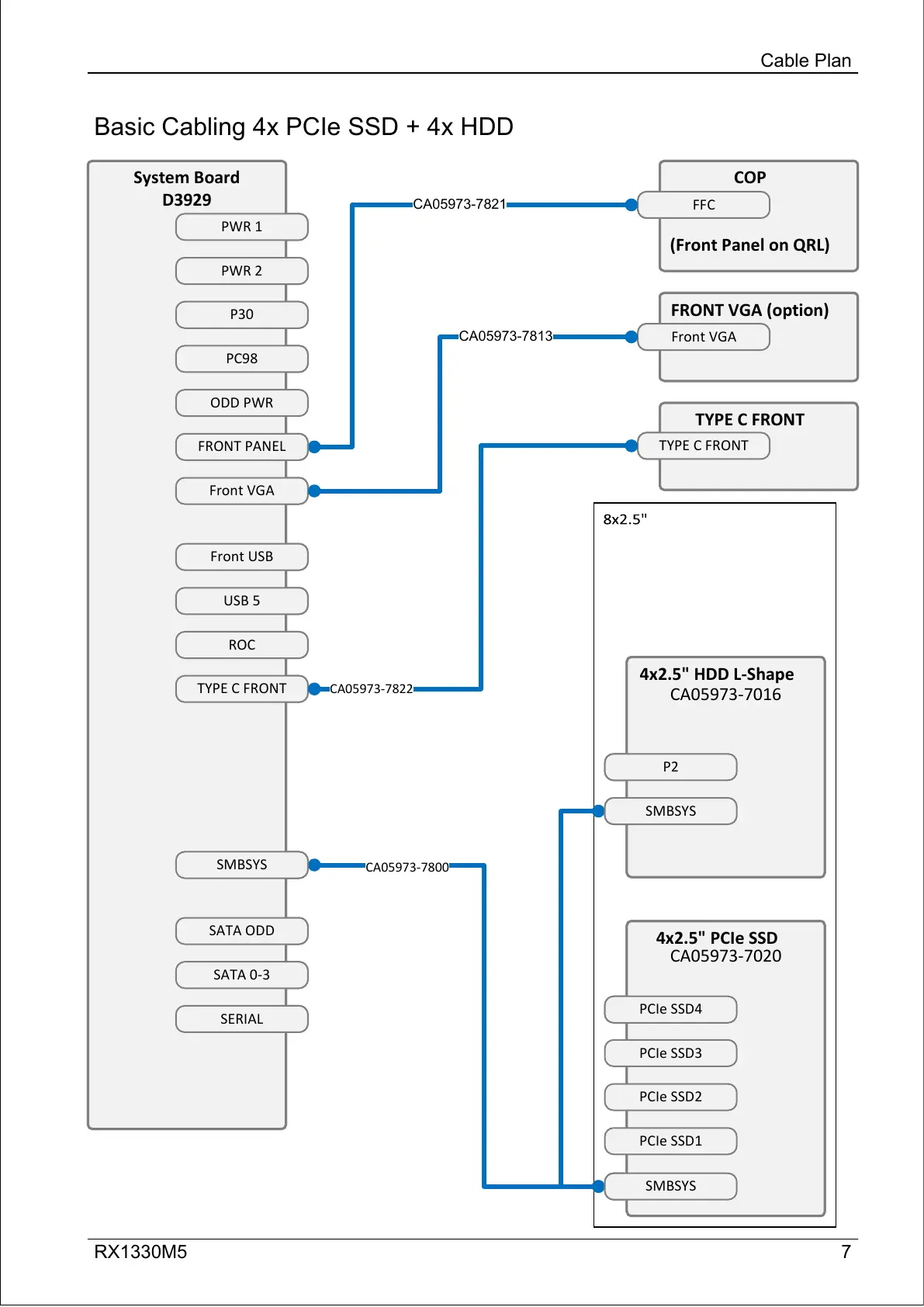

Basic Cabling 4x PCIe SSD + 4x HDD
Cable Plan
COP
(Front Panel on QRL)
FFC
COP
(Front Panel on QRL)
FFC
CA05973-7821
CA05973-7800
System Board
D3929
PWR 1
P30
PWR 2
TYPE C FRONT
FRONT PANEL
Front USB
USB 5
Front VGA
SMBSYS
SATA ODD
SATA 0-3
SERIAL
PC98
ROC
System Board
D3929
PWR 1
P30
PWR 2
TYPE C FRONT
FRONT PANEL
Front USB
USB 5
Front VGA
SMBSYS
SATA ODD
SATA 0-3
SERIAL
PC98
ROC
ODD PWR
4x2.5" HDD L-Shape
P2
SMBSYS
CA05973-7016
4x2.5" HDD L-Shape
P2
SMBSYS
CA05973-7016
4x2.5" PCIe SSD
PCIe SSD4
SMBSYS
CA05973-7020
4x2.5" PCIe SSD
PCIe SSD4
SMBSYS
CA05973-7020
PCIe SSD3
PCIe SSD2
PCIe SSD1
FRONT VGA (option)
Front VGA
FRONT VGA (option)
Front VGA
TYPE C FRONT
TYPE C FRONT
TYPE C FRONT
TYPE C FRONT
CA05973-7813
CA05973-7822

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
