Installing the new riser card

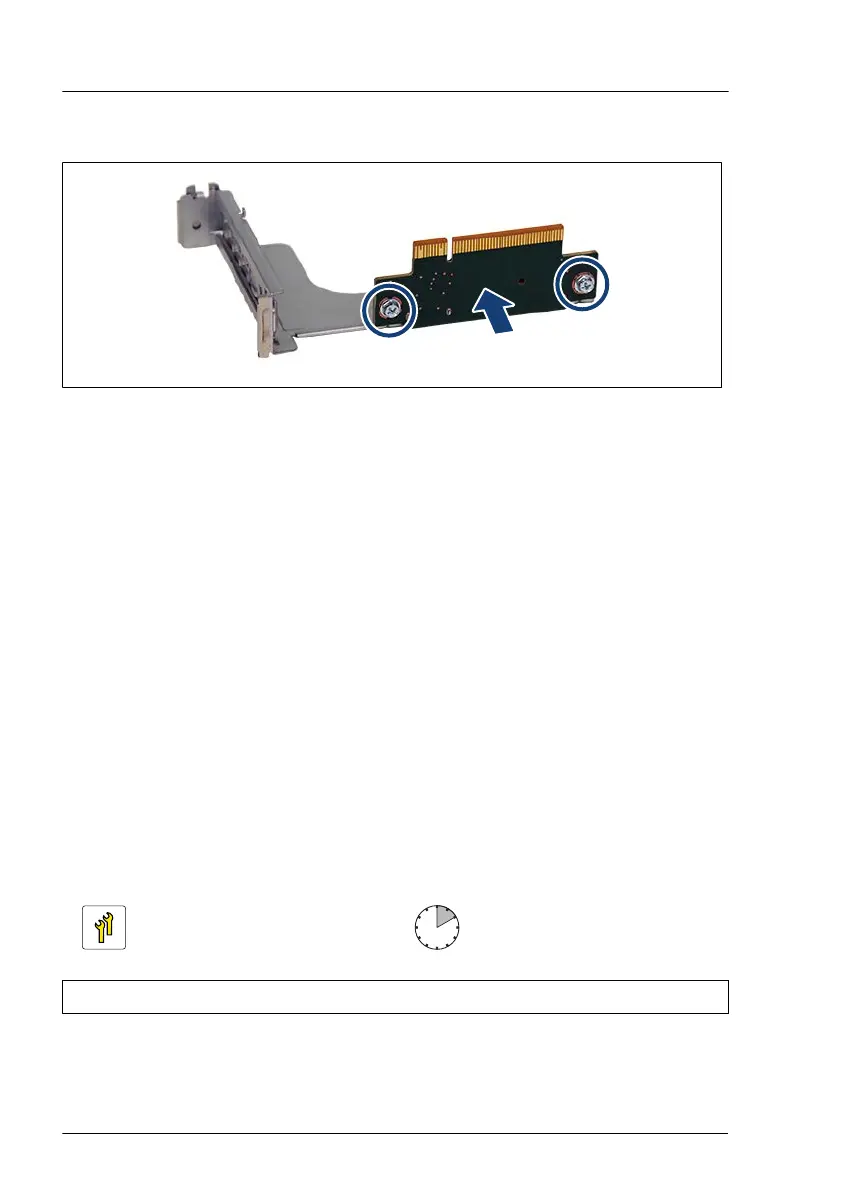

Figure 149: Installing the riser card - example riser module 1
▶
Insert the riser card.
▶
Fasten the riser card with two screws (see circles).
▶
Install the expansion card, see "Installing the expansion card" on page
196.
Concluding steps
▶
Install the corresponding riser module, see "Handling riser modules" on
page
62.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
9.5.6 Upgrading to the full height riser module
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Expansion cards and backup units
206 Upgrade and Maintenance Manual RX1330 M5
