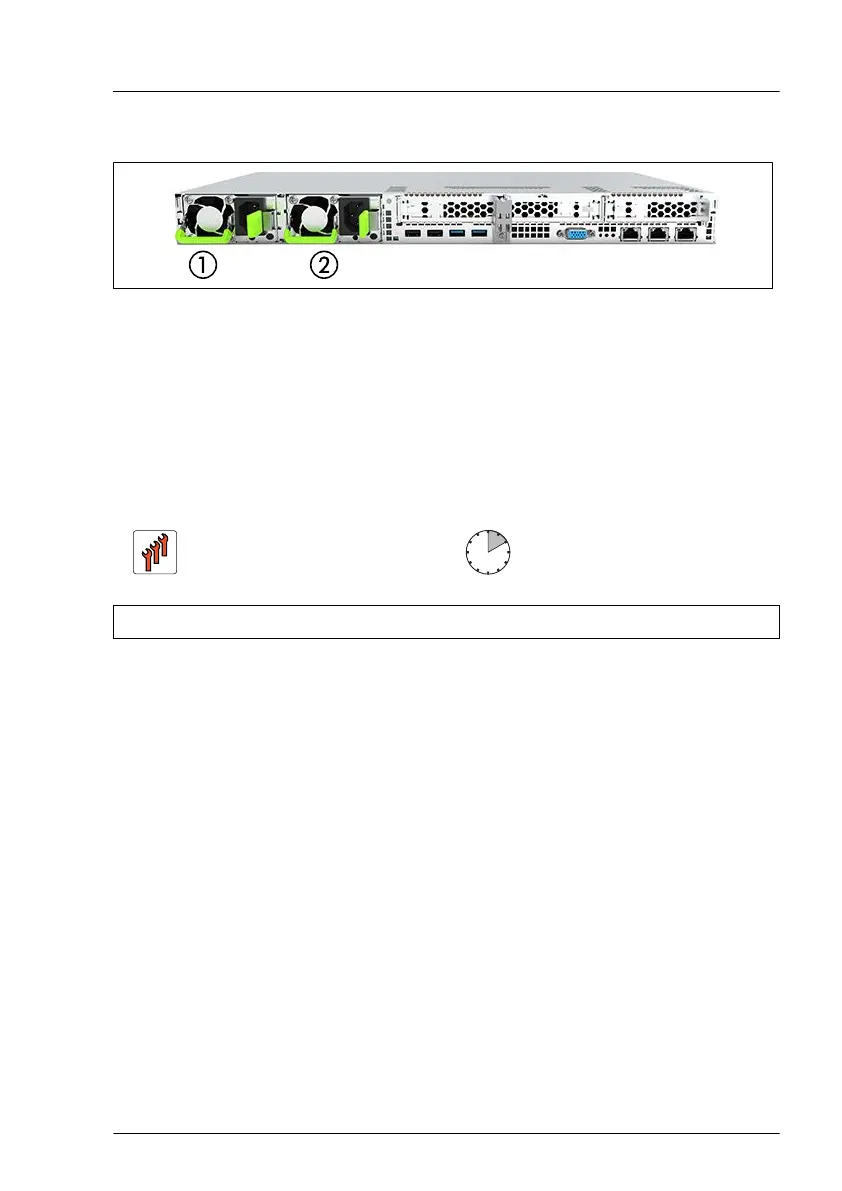

PSU bays
Figure 25: PSU bays
1 PSU 1 2 PSU 2
6.3 Standard power supply
6.3.1 Replacing the standard PSU
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Preliminary steps
▶
"Locating the defective server" on page
43
▶
"Suspending BitLocker functionality" on page
69
▶
If applicable, "Removing the front cover with lock" on page 45.
▶
"Shutting down the server" on page 46
▶
"Disconnecting the power cord" on page 47
▶
"Getting access to the component" on page 49
Power supply unit (PSU)
RX1330 M5 Upgrade and Maintenance Manual 97
