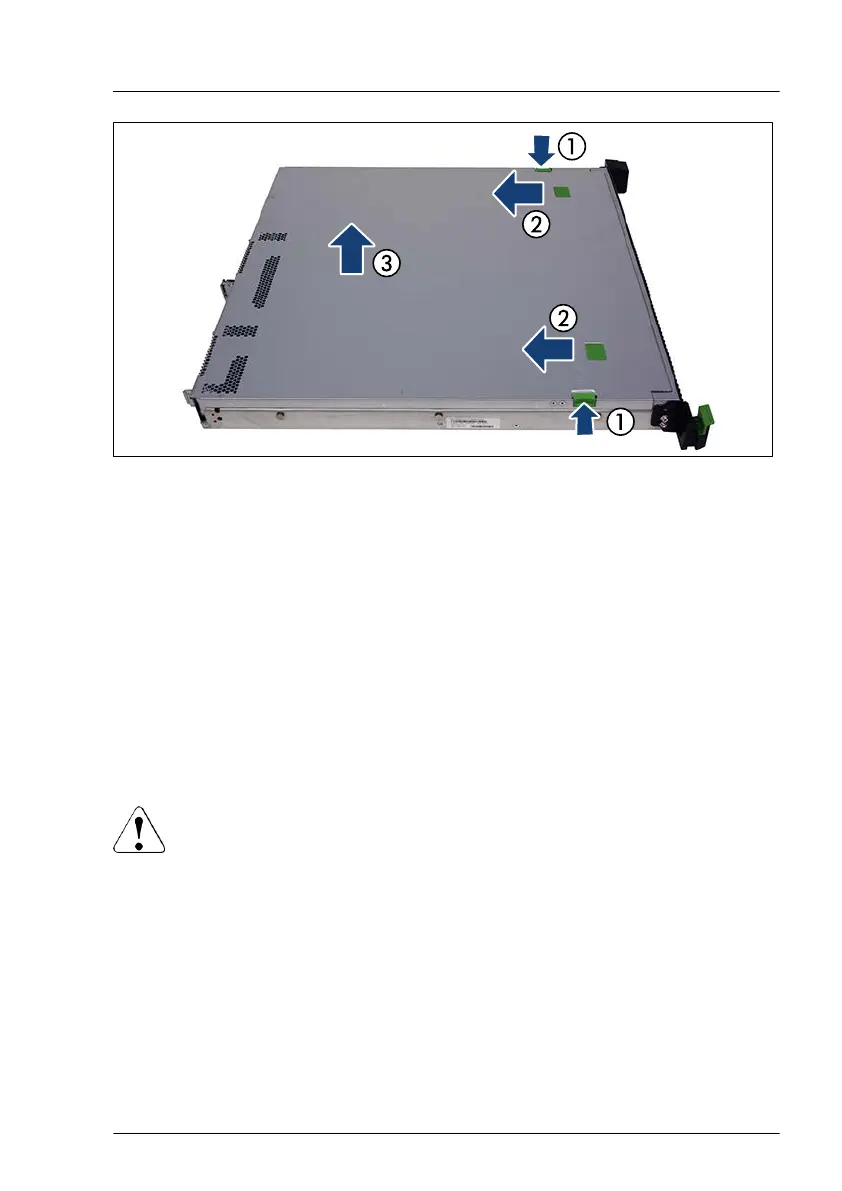

Figure 9: Removing the top cover (RX1330 M5S)
▶
Press the two green buttons inward to release the locking mechanism of the
cover (1).
▶
Push the cover to the rear side using the green touch points (2).
▶
Remove the top cover upward (3).
4.6 Reassembling
4.6.1
Safety notes
CAUTION
▶
Before attaching the covers, make sure no unnecessary parts or
tools are left inside the server.
▶
The top cover must be replaced as soon as possible for purposes
of cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
▶
For more information, see "Important information" on page 29
.
Basic hardware procedures
RX1330 M5 Upgrade and Maintenance Manual 53
