22RX1330M5

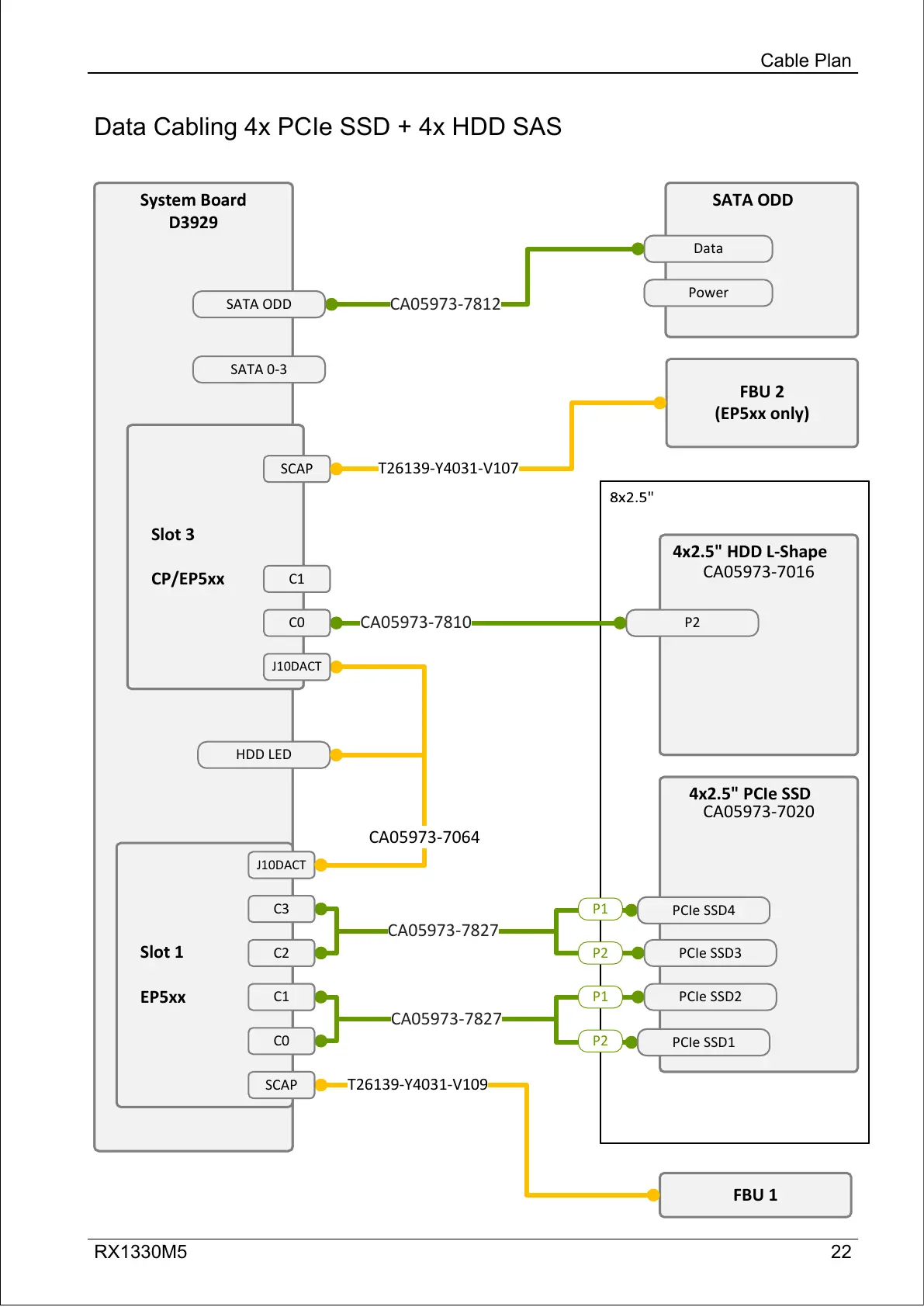

Data Cabling 4x PCIe SSD + 4x HDD SAS
Cable Plan
SATA ODD
Data
Power
SATA ODD
Data
Power
CA05973-7812
FBU 1
T26139-Y4031-V109
CA05973-7827
CA05973-7827
System Board
D3929
SATA ODD
HDD LED
SATA 0-3
Slot 1
EP5xx
C1
C0
SCAP
J10DACT
C3
C2
System Board
D3929
SATA ODD
HDD LED
SATA 0-3
Slot 1
EP5xx
C1
C0
SCAP
J10DACT
C3
C2 P2
CA05973-7064
P1
P1
P2
4x2.5" HDD L-Shape
P2
CA05973-7016
4x2.5" HDD L-Shape
P2
CA05973-7016
4x2.5" PCIe SSD
PCIe SSD4
PCIe SSD1
CA05973-7020
4x2.5" PCIe SSD
PCIe SSD4
PCIe SSD1
CA05973-7020
PCIe SSD3
PCIe SSD2
CA05973-7810
FBU 2
(EP5xx only)
Slot 3
CP/EP5xx
C1
C0
SCAP
J10DACT
Slot 3
CP/EP5xx
C1
C0
SCAP
J10DACT
T26139-Y4031-V107
