Fujitsu PRIMERGY RX1330 M5

To Next Page

To Previous Page

11RX1330M5S

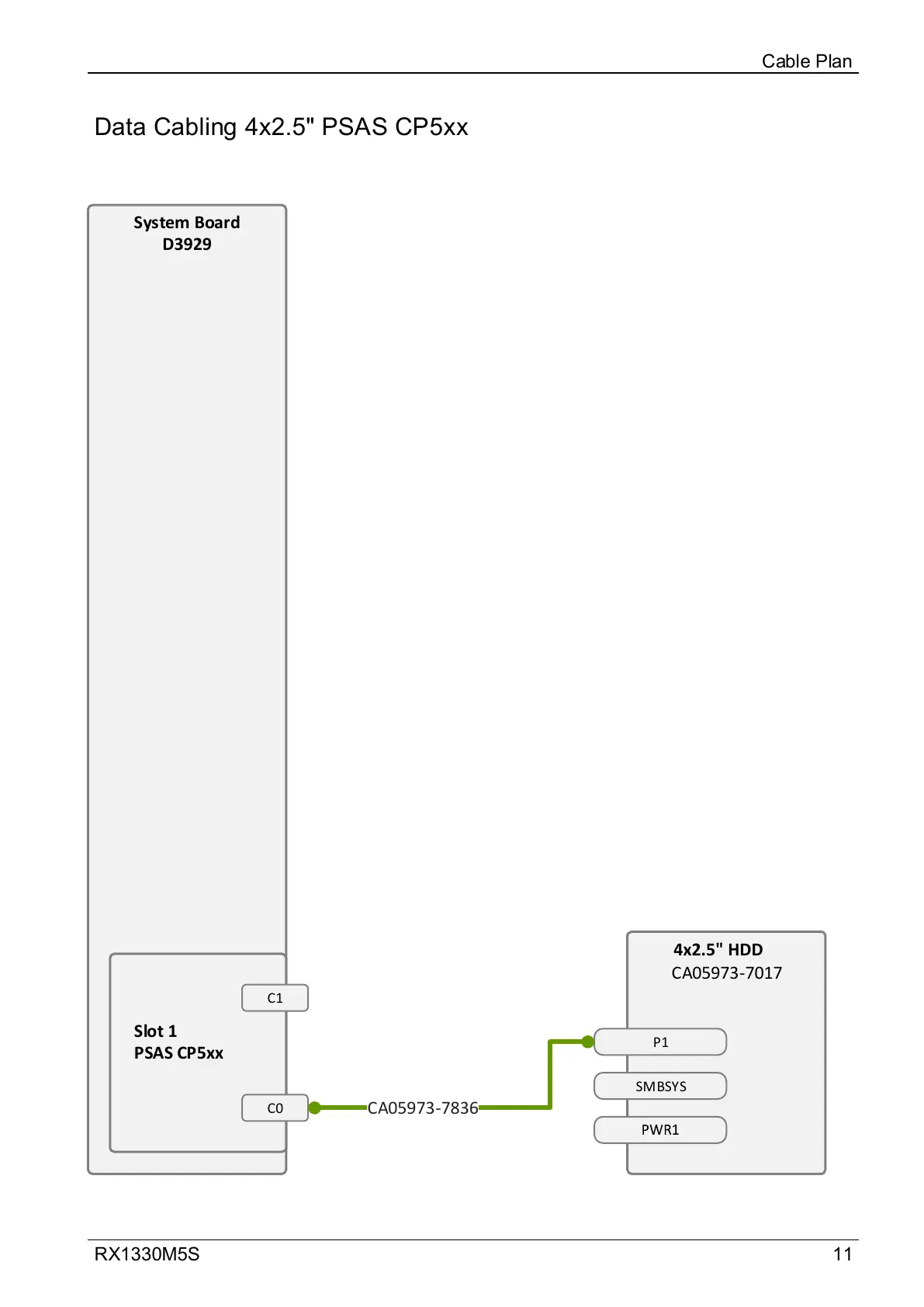

Data Cabling 4x2.5" PSAS CP5xx

Cable Plan

System Board

D3929

Slot 1

PSAS CP5xx

4x2.5" HDD

SMBSYS

CA05973-7017

CA05973-7836
