Fujitsu PRIMERGY RX1330 M5 User Manual

3RX1330M5

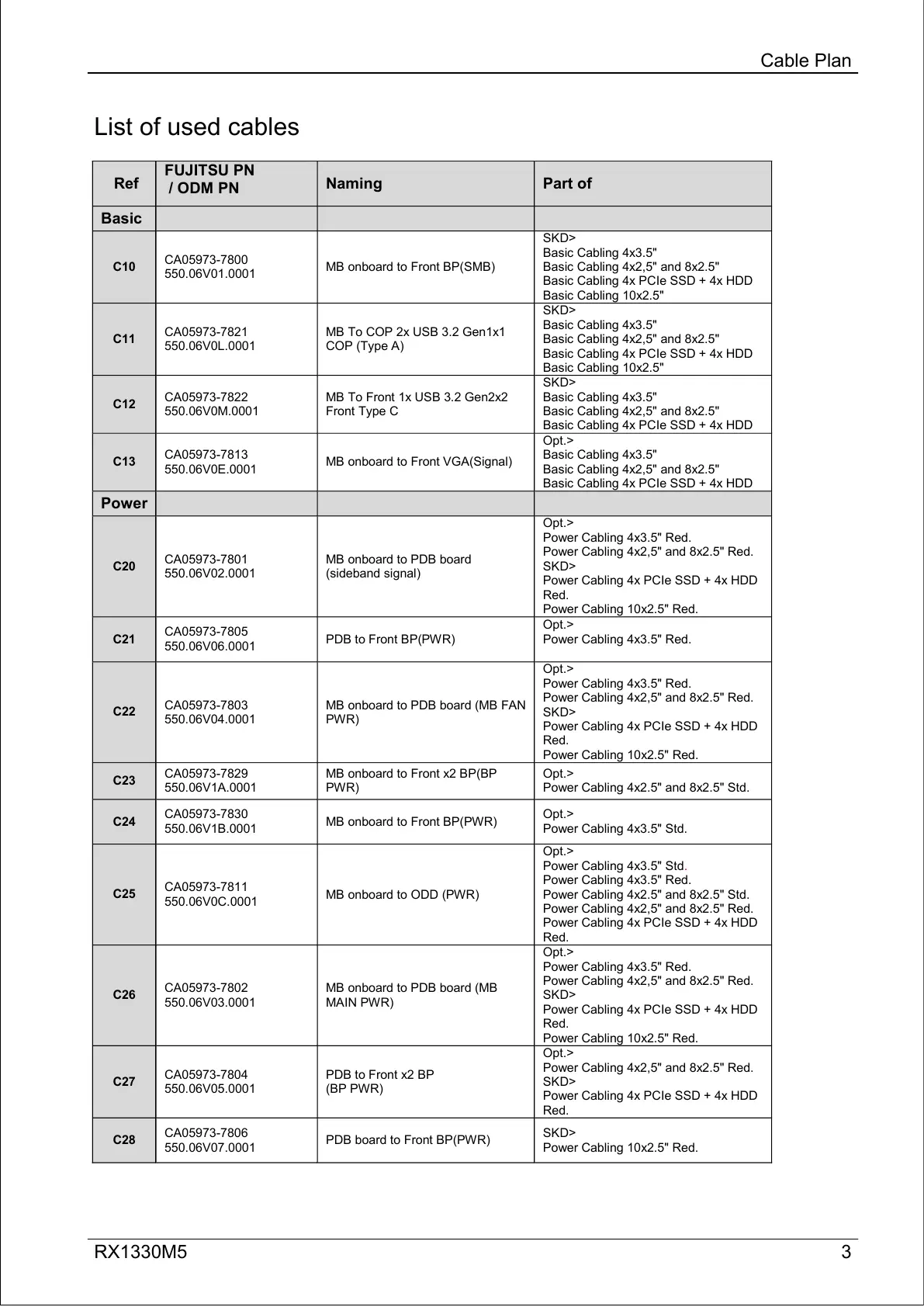

List of used cables
Cable Plan
Ref
FUJITSU PN
/ ODM PN
Naming
Part of
Basic
C10
CA05973-7800
550.06V01.0001
MB onboard to Front BP(SMB)
SKD>
Basic Cabling 4x3.5"
Basic Cabling 4x2,5" and 8x2.5"
Basic Cabling 4x PCIe SSD + 4x HDD
Basic Cabling 10x2.5"
C11
CA05973-7821
550.06V0L.0001
MB To COP 2x USB 3.2 Gen1x1
COP (Type A)
SKD>
Basic Cabling 4x3.5"
Basic Cabling 4x2,5" and 8x2.5"
Basic Cabling 4x PCIe SSD + 4x HDD
Basic Cabling 10x2.5"
C12
CA05973-7822
550.06V0M.0001
MB To Front 1x USB 3.2 Gen2x2
Front Type C
SKD>
Basic Cabling 4x3.5"
Basic Cabling 4x2,5" and 8x2.5"
Basic Cabling 4x PCIe SSD + 4x HDD
C13
CA05973-7813
550.06V0E.0001
MB onboard to Front VGA(Signal)
Opt.>
Basic Cabling 4x3.5"
Basic Cabling 4x2,5" and 8x2.5"
Basic Cabling 4x PCIe SSD + 4x HDD
Power
C20
CA05973-7801
550.06V02.0001
MB onboard to PDB board
(sideband signal)
Opt.>
Power Cabling 4x3.5" Red.
Power Cabling 4x2,5" and 8x2.5" Red.
SKD>
Power Cabling 4x PCIe SSD + 4x HDD
Red.
Power Cabling 10x2.5" Red.
C21
CA05973-7805
550.06V06.0001
PDB to Front BP(PWR)
Opt.>
Power Cabling 4x3.5" Red.
C22
CA05973-7803
550.06V04.0001
MB onboard to PDB board (MB FAN
PWR)
Opt.>
Power Cabling 4x3.5" Red.
Power Cabling 4x2,5" and 8x2.5" Red.
SKD>
Power Cabling 4x PCIe SSD + 4x HDD
Red.
Power Cabling 10x2.5" Red.
C23
CA05973-7829
550.06V1A.0001
MB onboard to Front x2 BP(BP
PWR)
Opt.>
Power Cabling 4x2.5" and 8x2.5" Std.
C24
CA05973-7830
550.06V1B.0001
MB onboard to Front BP(PWR)
Opt.>
Power Cabling 4x3.5" Std.
C25
CA05973-7811
550.06V0C.0001
MB onboard to ODD (PWR)
Opt.>
Power Cabling 4x3.5" Std.
Power Cabling 4x3.5" Red.
Power Cabling 4x2.5" and 8x2.5" Std.
Power Cabling 4x2,5" and 8x2.5" Red.
Power Cabling 4x PCIe SSD + 4x HDD
Red.
C26
CA05973-7802
550.06V03.0001
MB onboard to PDB board (MB
MAIN PWR)
Opt.>
Power Cabling 4x3.5" Red.
Power Cabling 4x2,5" and 8x2.5" Red.
SKD>
Power Cabling 4x PCIe SSD + 4x HDD
Red.
Power Cabling 10x2.5" Red.
C27
CA05973-7804
550.06V05.0001
PDB to Front x2 BP
(BP PWR)
Opt.>
Power Cabling 4x2,5" and 8x2.5" Red.
SKD>
Power Cabling 4x PCIe SSD + 4x HDD
Red.
C28
CA05973-7806
550.06V07.0001
PDB board to Front BP(PWR)
SKD>
Power Cabling 10x2.5" Red.

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
