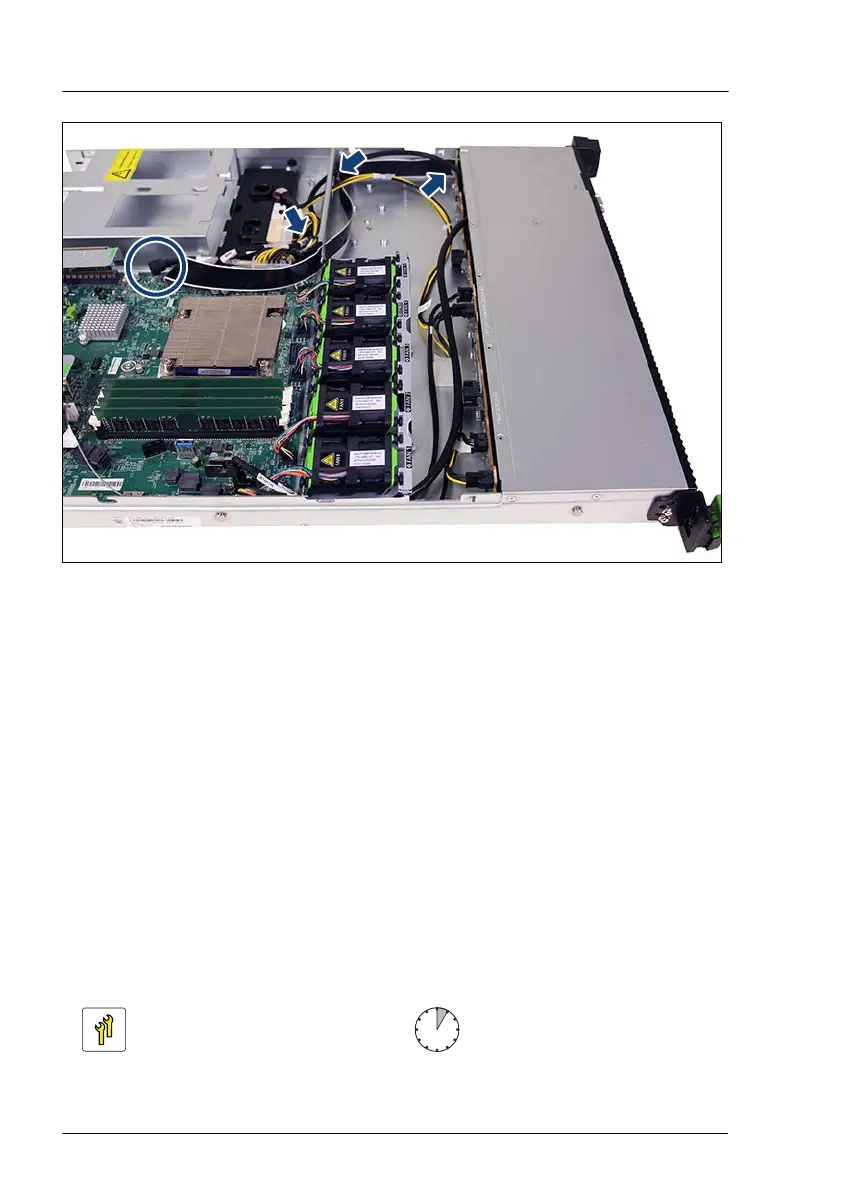

Figure 225: Connecting the front USB cable
▶
Connect the front USB cable to the system board connector "TYPE C
FRONT " (see circle).
Concluding steps
▶
"Installing the air duct" on page
66.
▶
"Reassembling" on page
53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
13.5.2 Replacing the front USB
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Front panel
