Fujitsu PRIMERGY RX1330 M5

Installing the new front USB
▶
Thread the new front USB cable through the opening.
A

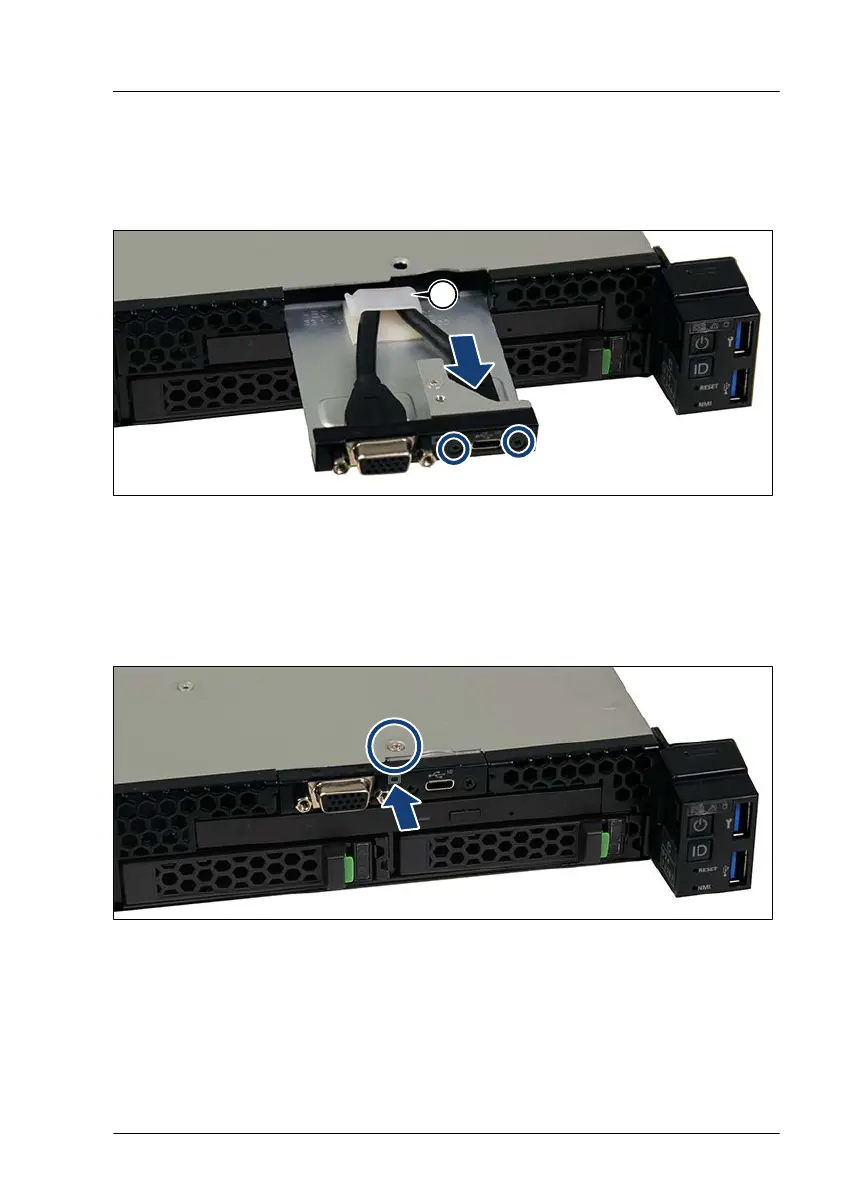

Figure 223: Installing the front USB connector
▶
Push the front USB connector into the recess in the front VGA module.
▶
Fasten the front USB connector with the two screws (see circles).
▶
Fasten the front USB cable with the cable clamp (A).
Figure 224: Installing the front VGA module
▶
Push the front VGA module into place.
▶
Fasten the front VGA module with one screw (see circle).
Front panel
RX1330 M5 Upgrade and Maintenance Manual 277
