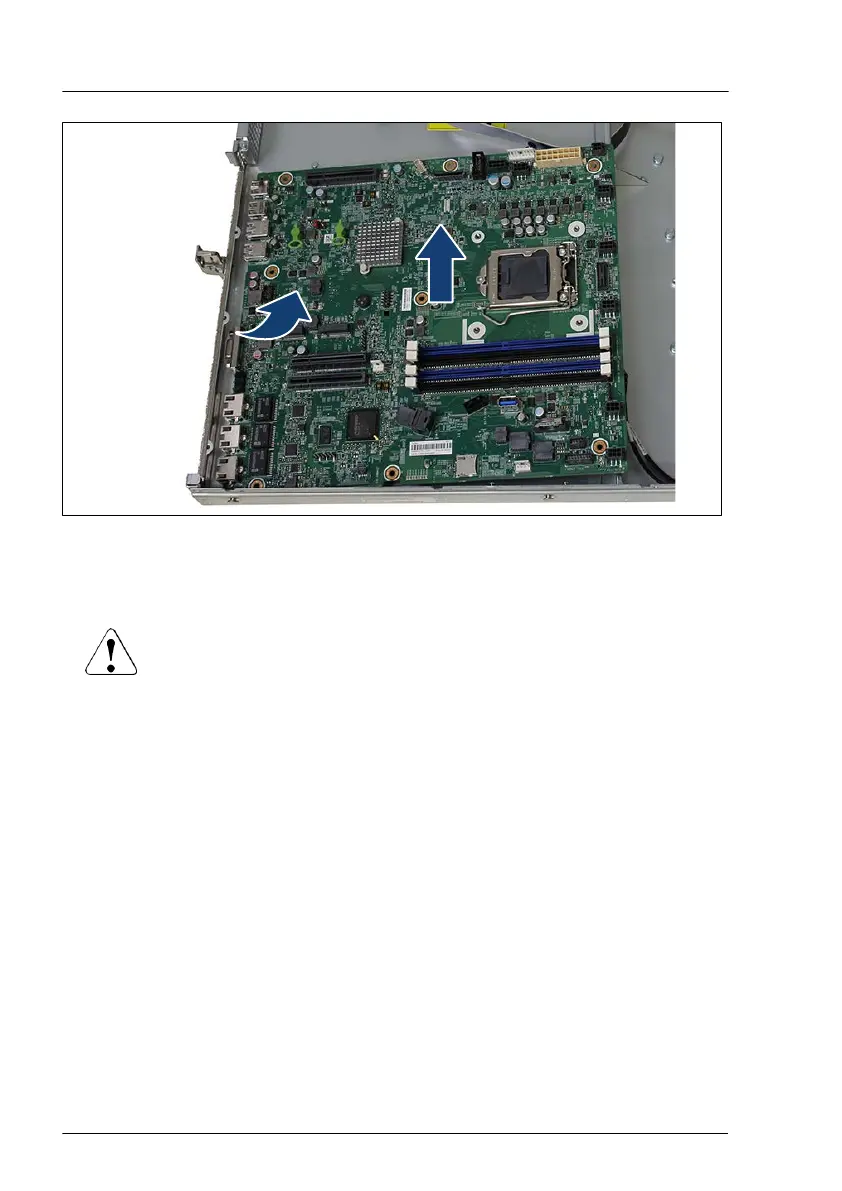

Figure 261: Removing the system board
▶
Use both hands to lift the system board carefully out of the chassis in a
slight angle. Thereby you pull the connectors out of the I/O panel.
CAUTION
▶
Always take the system board with both hands!
▶
Never lift the system board one-sided or at a heat sink,
because the solder connections between the socket and the
system board come under tension and increase the risk of
damage and malfunction!
▶
Do not damage the EMI springs which are essential to comply
with applicable EMC regulations and satisfy cooling
requirements and fire protection measures.
▶
Place the removed and the new system board on an antistatic surface.
▶
Remove the heat sink, see "Removing the heat sink" on page
233.
▶
Remove the CPU from the defective system board, see "Removing the
CPU" on page 234.
System board and components
332 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
