Fujitsu PRIMERGY RX1330 M5

To Next Page

To Previous Page

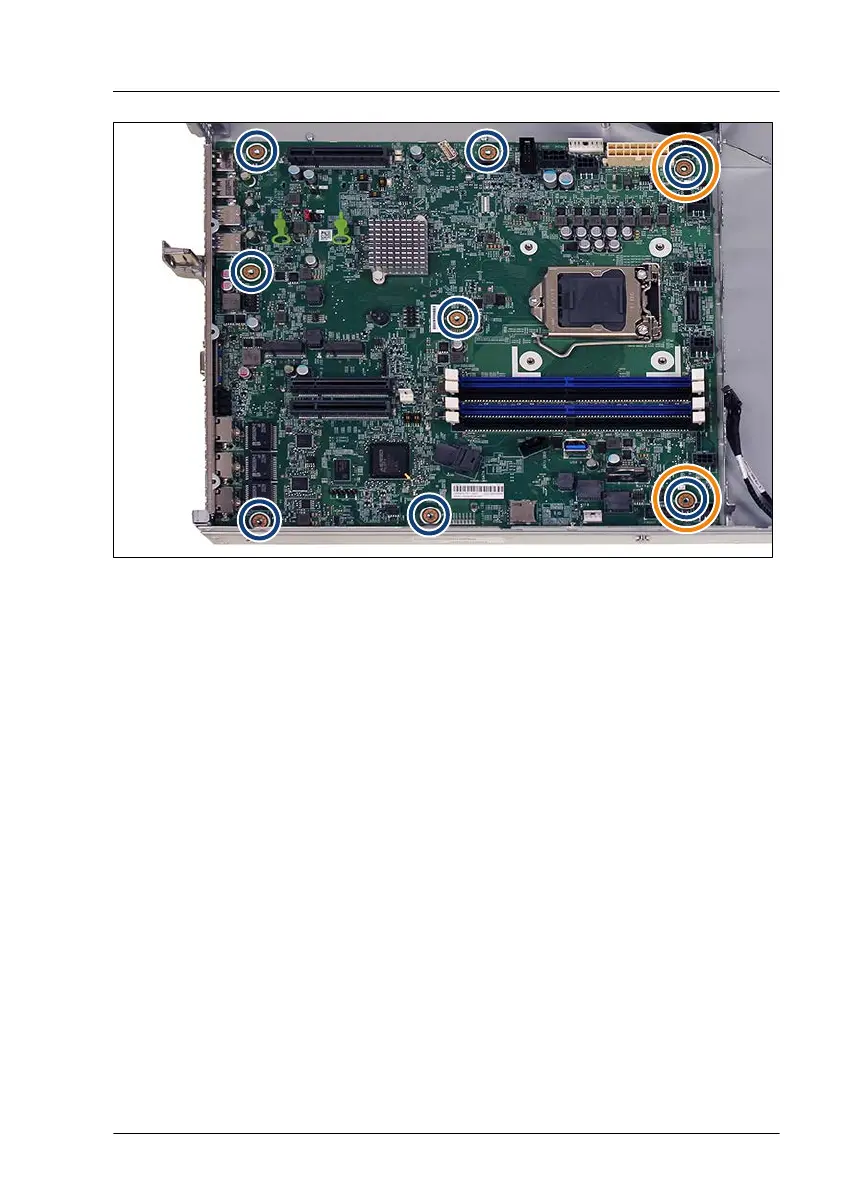

Figure 260: Position of the screws

▶

Remove the eight screws (see blue circles, orange circles show the

centering bolts) from the system board.

System board and components

RX1330 M5 Upgrade and Maintenance Manual 331
