Fujitsu PRIMERGY RX1330 M5 User Manual

For the cable plan, see "Appendix B" on page 363.
Concluding steps
▶
Insert all HDD modules, see "Installing a 3.5-inch HDD module" on
page 128
.
Make sure that you reinstall the HDD module in the bay it was located
before the HDD backplane replacement.
▶
Insert all dummy modules, see "Installing a 3.5-inch dummy module" on
page 131.
▶
"Reassembling" on page
53
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
7.5 2.5-inch HDD/SSD configurations
7.5.1 Overview of configurations
7.5.1.1 Configuration with up to four HDD / SSD / PCIe SSD modules

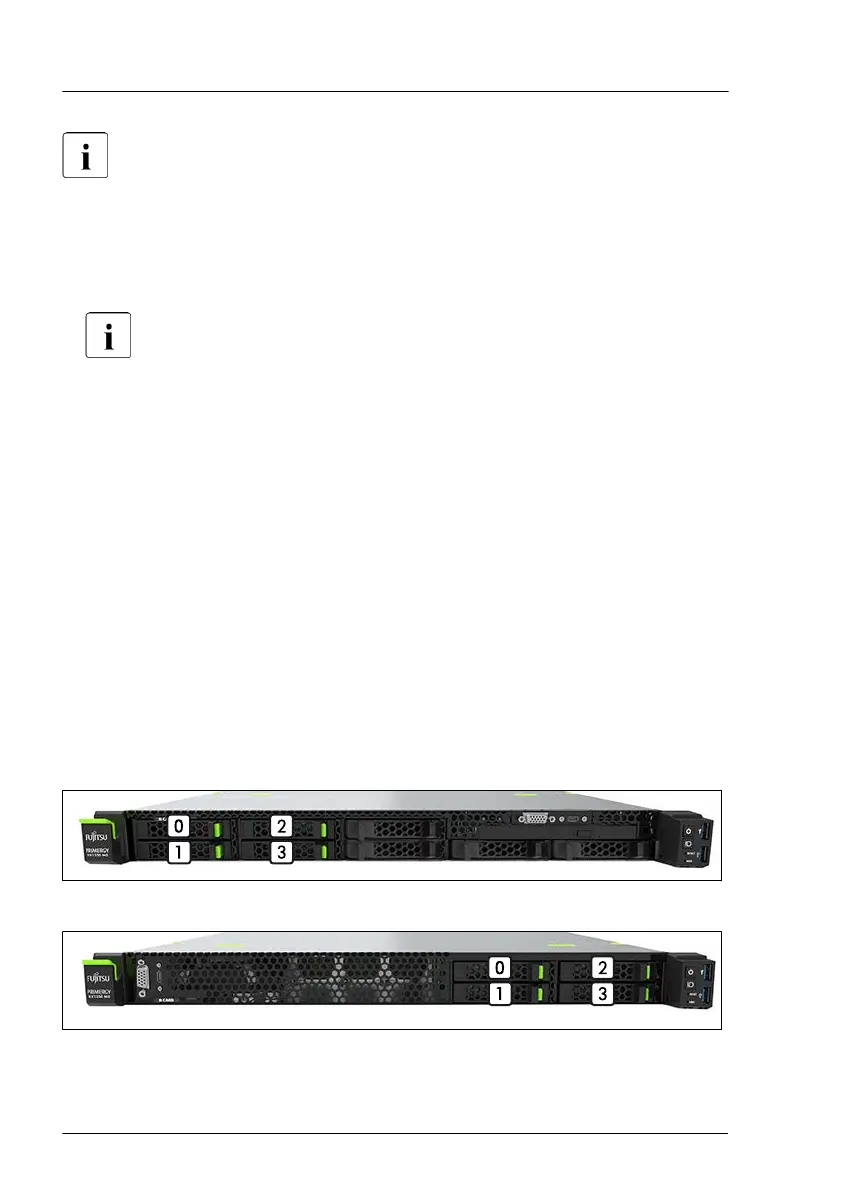

Figure 67: Numbering of the HDDs/SSDs
Figure 68: Numbering of the HDDs/SSDs (RX1330 M5S)
Hard disk drive (HDD) / solid state disk (SSD)
136 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
