Fujitsu PRIMERGY RX1330 M5 User Manual

Tools: Phillips PH1 / (+) No. 1 screw driver
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 45
.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 49.
▶
"Removing the air duct" on page 65.
Removing the defective front USB
▶
Disconnect the front USB cable from the system board connector "TYPE C
FRONT".

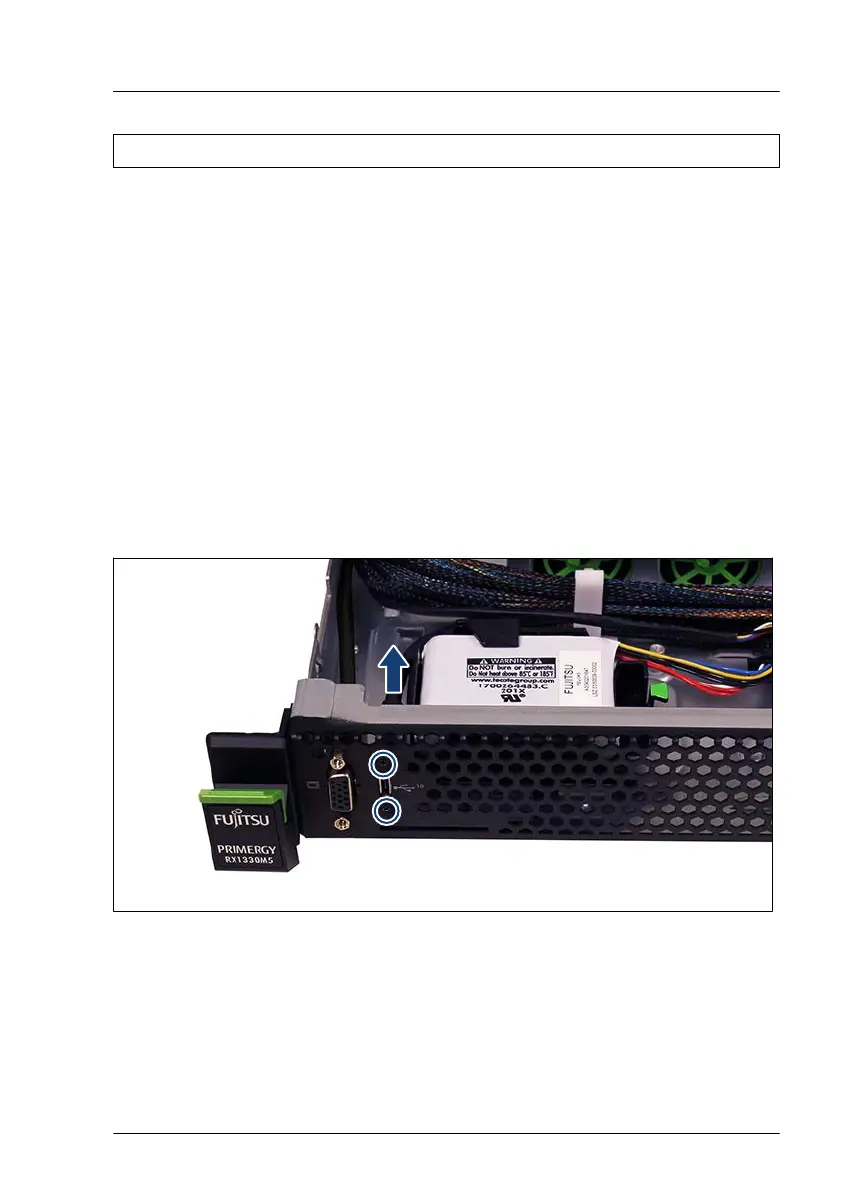

Figure 226: Removing the front USB connector
▶
Remove the two screws (see circles).
▶
Pull the front USB connector out of the recess at the front panel.
▶
Remove the front USB cable.
Front panel
RX1330 M5 Upgrade and Maintenance Manual 279
