Removing the defective standard PSU

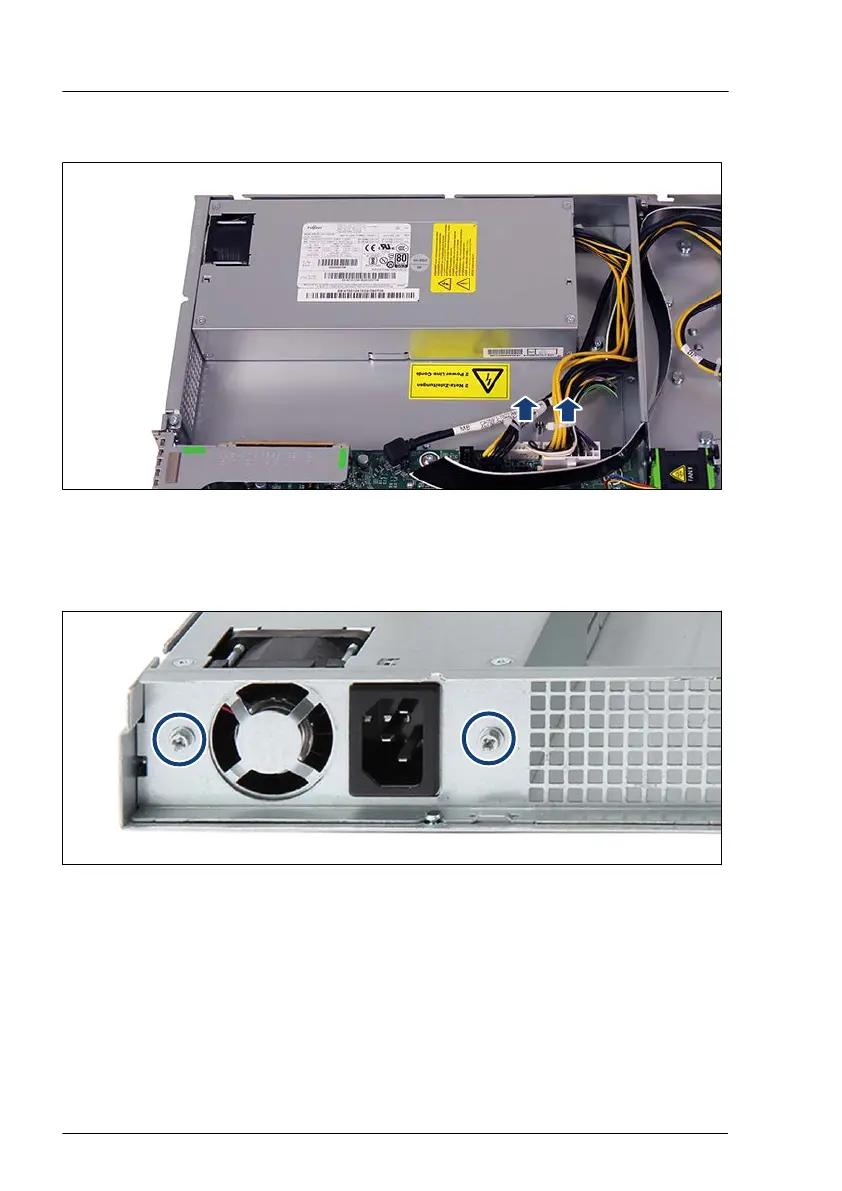

Figure 26: Disconnecting the power cables
▶
Disconnect the two power cables from the system board connectors "PC98"
and "PWR1".
Figure 27: Removing the screws
▶
Remove the two screws (see circles).
Power supply unit (PSU)
