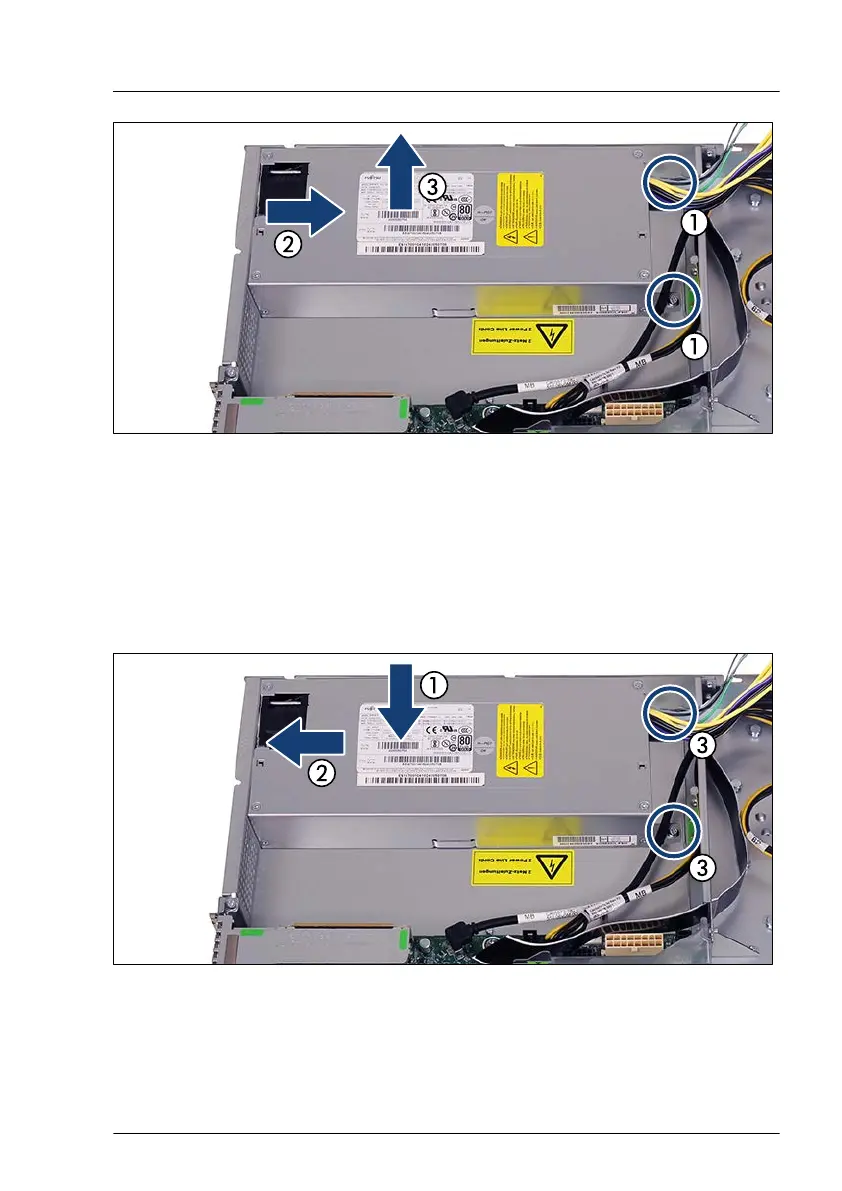

Figure 28: Removing the standard PSU
▶
Remove the two screws (1).
▶
Pull the PSU a somewhat toward the inside (2).
▶
T
ake the PSU out upward (3).
Installing the new standard PSU
Figure 29: Installing the standard PSU
▶
Insert the PSU into the bay (1).
▶
Push the PSU toward the adapter plate (2).
Power supply unit (PSU)
RX1330 M5 Upgrade and Maintenance Manual 99
