Fujitsu PRIMERGY RX1330 M5 User Manual

▶
Fasten the PSU with two screws in the chassis (3).
▶
Fasten the PSU with two screws to the adapter plate (see "Removing the
screws" on page
98
).

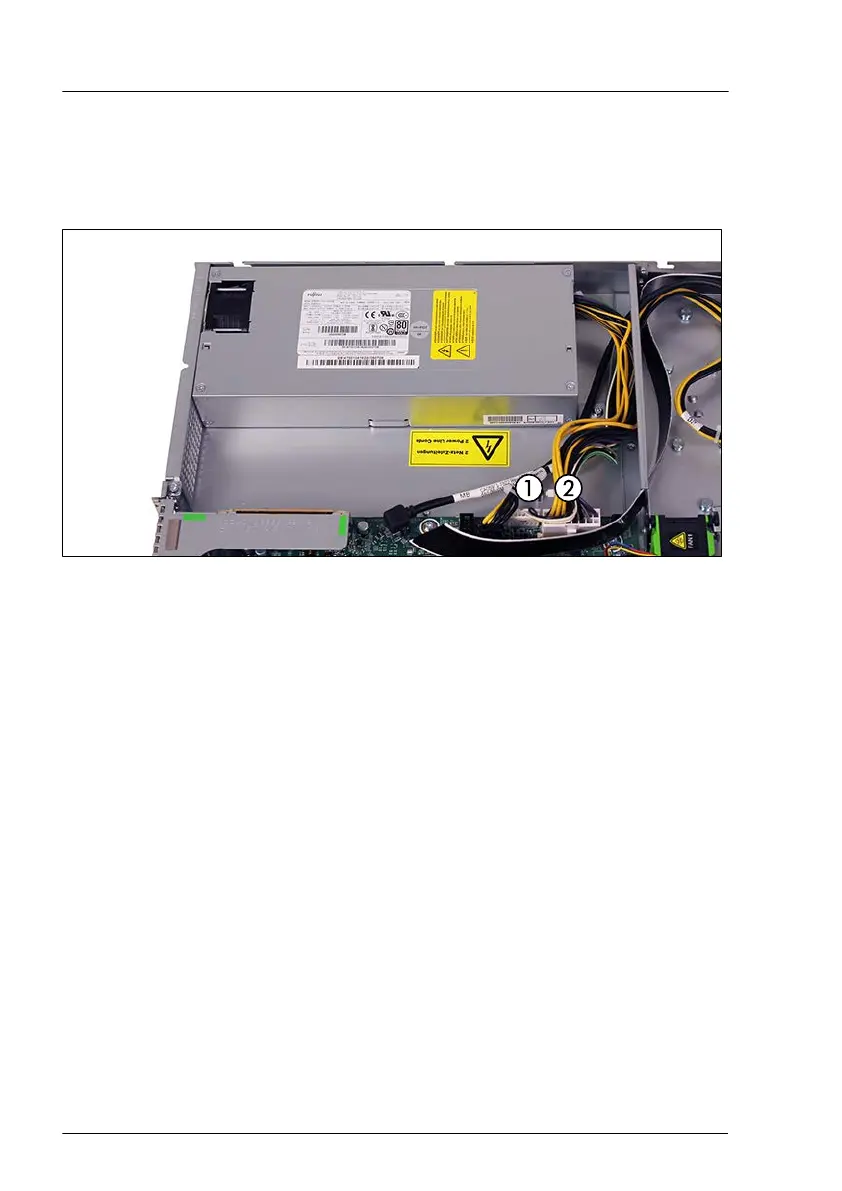

Figure 30: Connecting the power cables
▶
Connect the power cables to the system board:
▶
PSU power cable (1) to connector "PC98".
▶
Power signal cable (2) to connector "PWR1".
Concluding steps
▶
"Reassembling" on page
53
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
▶
"Resuming BitLocker functionality" on page 86.
▶
"Performing a fan test" on page 94.
Power supply unit (PSU)
100 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
