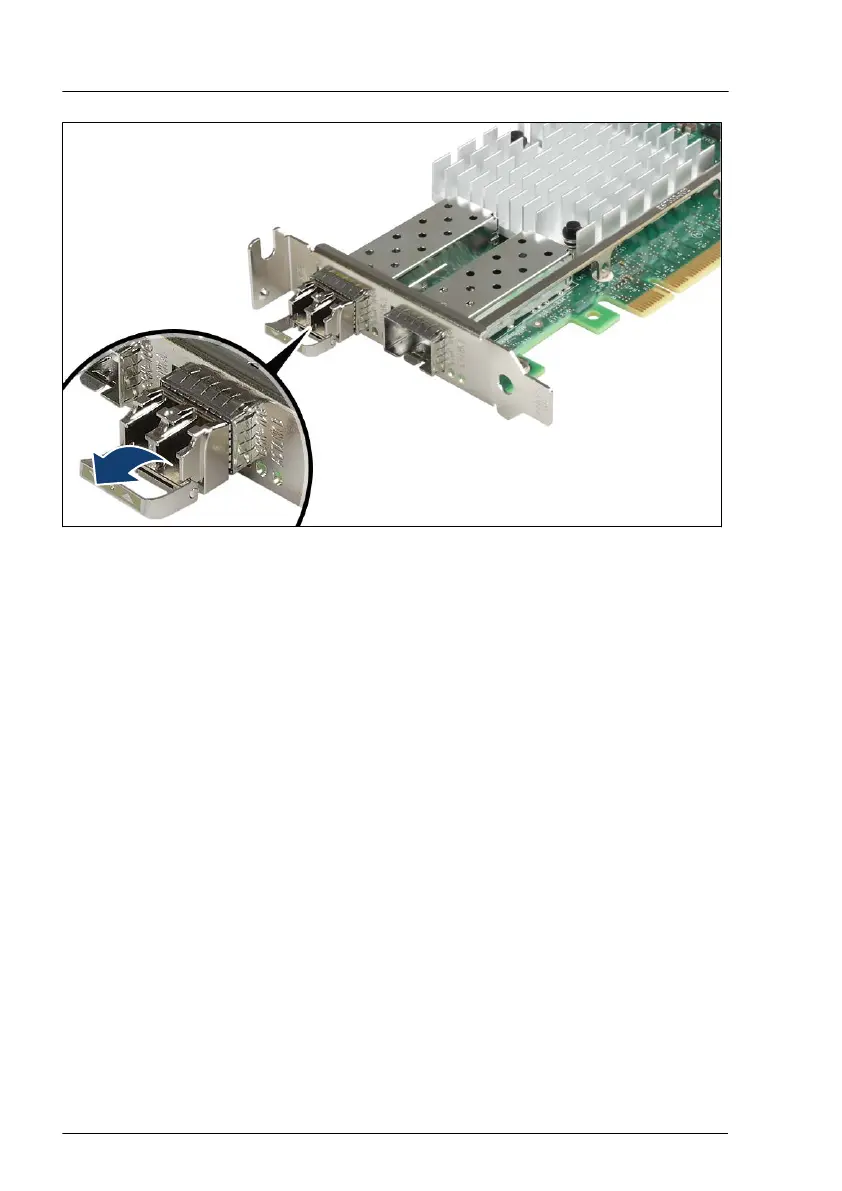

Figure 134: Unlatching the locking bail

▶

Carefully unlatch and fold down the locking bail on the SFP+ transceiver

module to eject the transceiver from the socket connector.

Expansion cards and backup units

192 Upgrade and Maintenance Manual RX1330 M5
