Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 45
.
▶
Locate the correct drive bay, see "Overview of configurations" on page 136.
Removing a 2.5-inch HDD/SSD dummy module

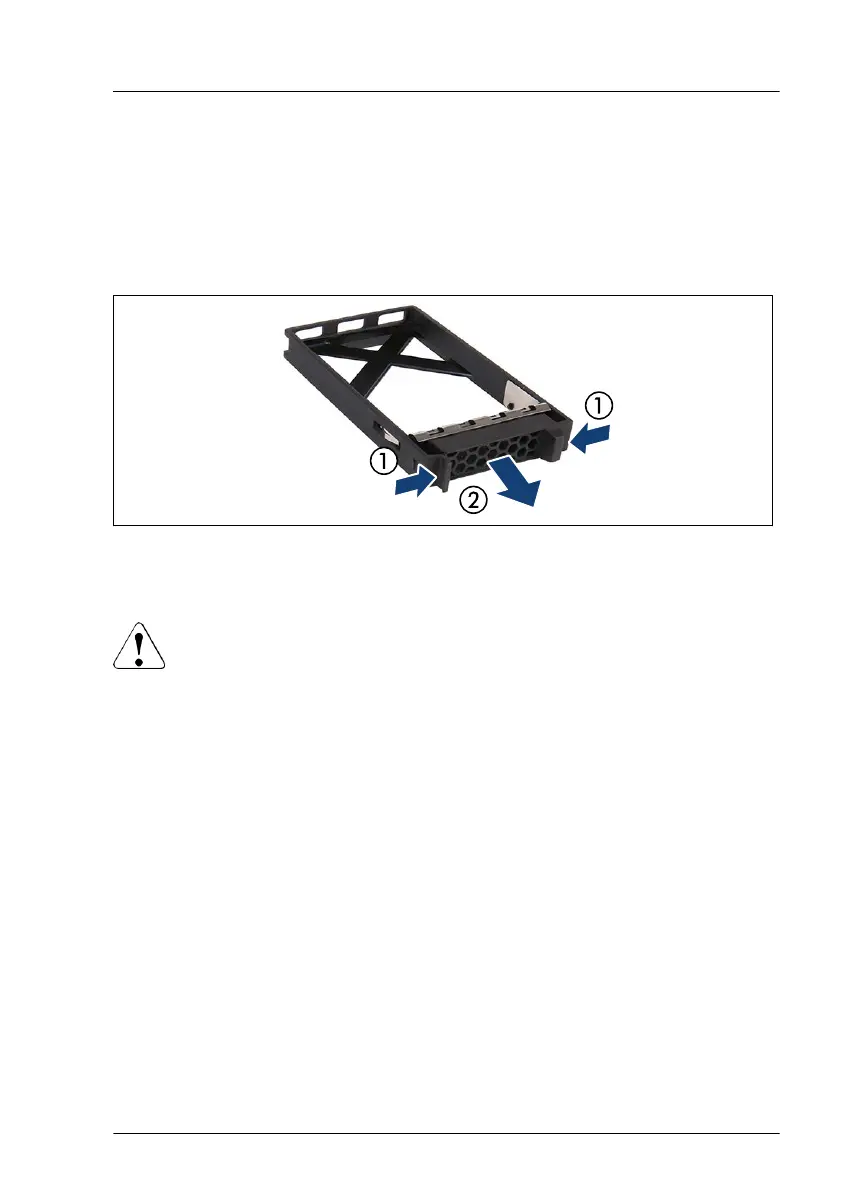

Figure 71: Removing a 2.5-inch HDD/SSD dummy module
▶
Press both tabs together (1) and pull the dummy module out of its bay
(2).
CAUTION
▶
Keep the dummy module for future use.
▶
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Hard disk drive (HDD) / solid state disk (SSD)
RX1330 M5 Upgrade and Maintenance Manual 139
