Installing a 2.5-inch HDD/SSD module

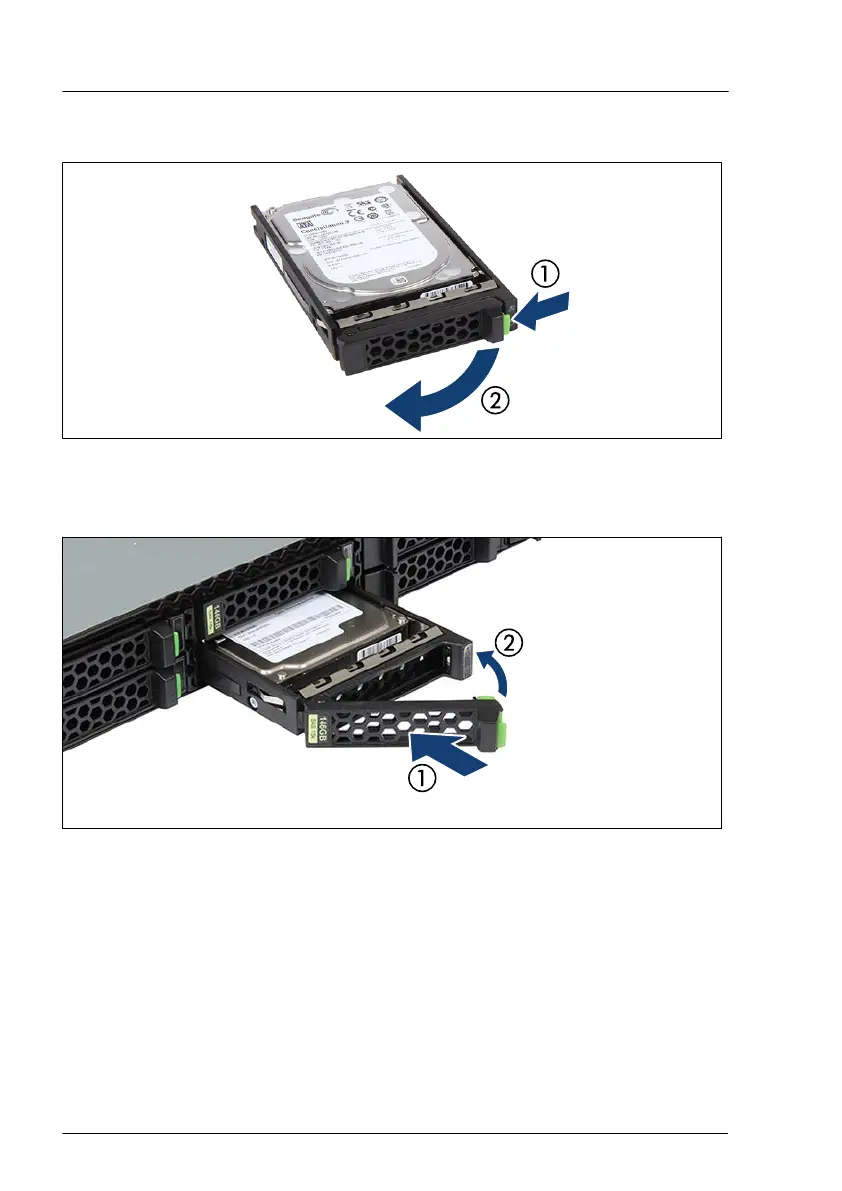

Figure 72: Opening the locking lever
▶
Pinch the green locking clips (1) and open the locking lever (2).
Figure 73: Installing the 2.5-inch HDD/SSD module
▶
Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (1).
▶
Close the locking lever to lock the HDD/SSD module in place (2).
▶
When using a RAID array
, add the additional HDD/SSD to the RAID array
.
Hard disk drive (HDD) / solid state disk (SSD)
140 Upgrade and Maintenance Manual RX1330 M5
