Fujitsu PRIMERGY RX1330 M5 User Manual

Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 45
.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 49.
▶
"Removing the air duct" on page 65.

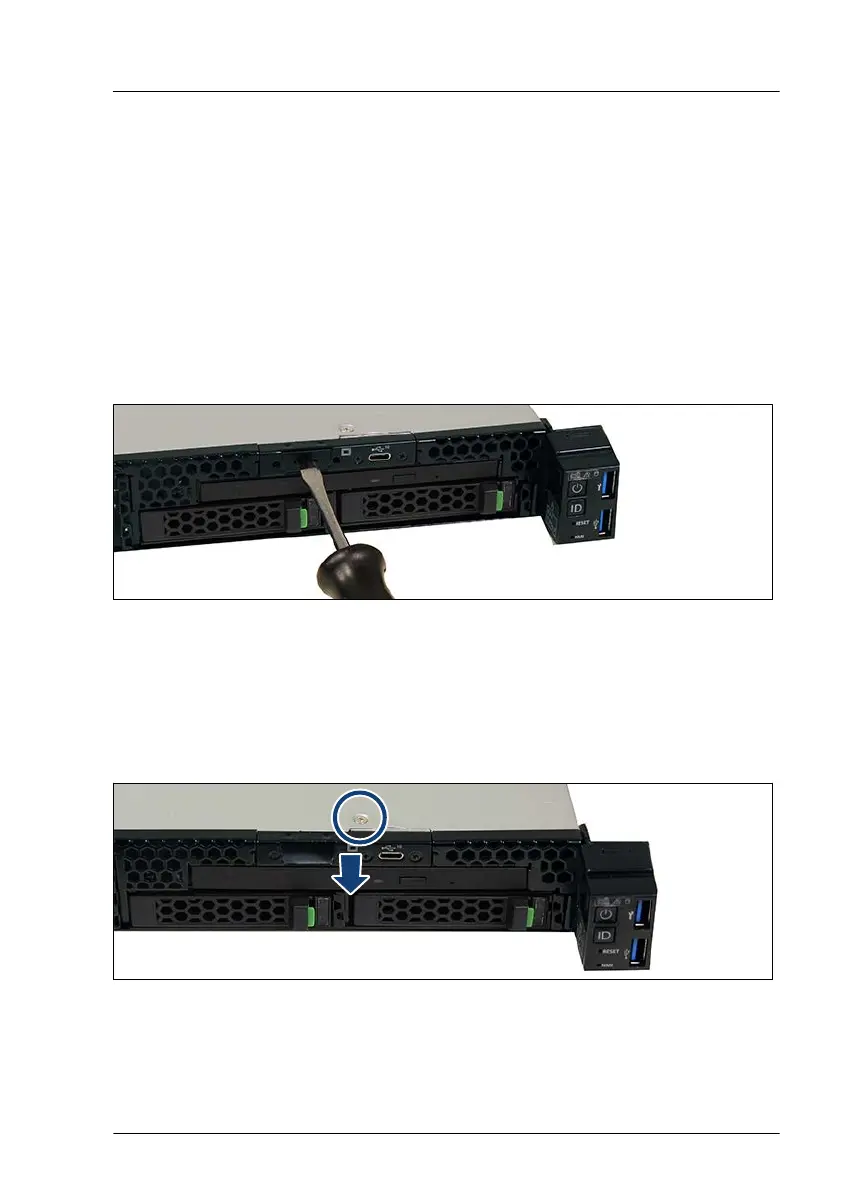

Removing the break out
Figure 208: Removing the break out
▶
Remove the break out.
▶
T
ry to move up and down until the break out has been released.
Removing the front VGA module
Figure 209: Removing the front VGA module
▶
Remove the screw (see circle).
▶
Pull out the front VGA module.
Front panel
RX1330 M5 Upgrade and Maintenance Manual 265
