Fujitsu PRIMERGY RX1330 M5 User Manual

Installing the front VGA

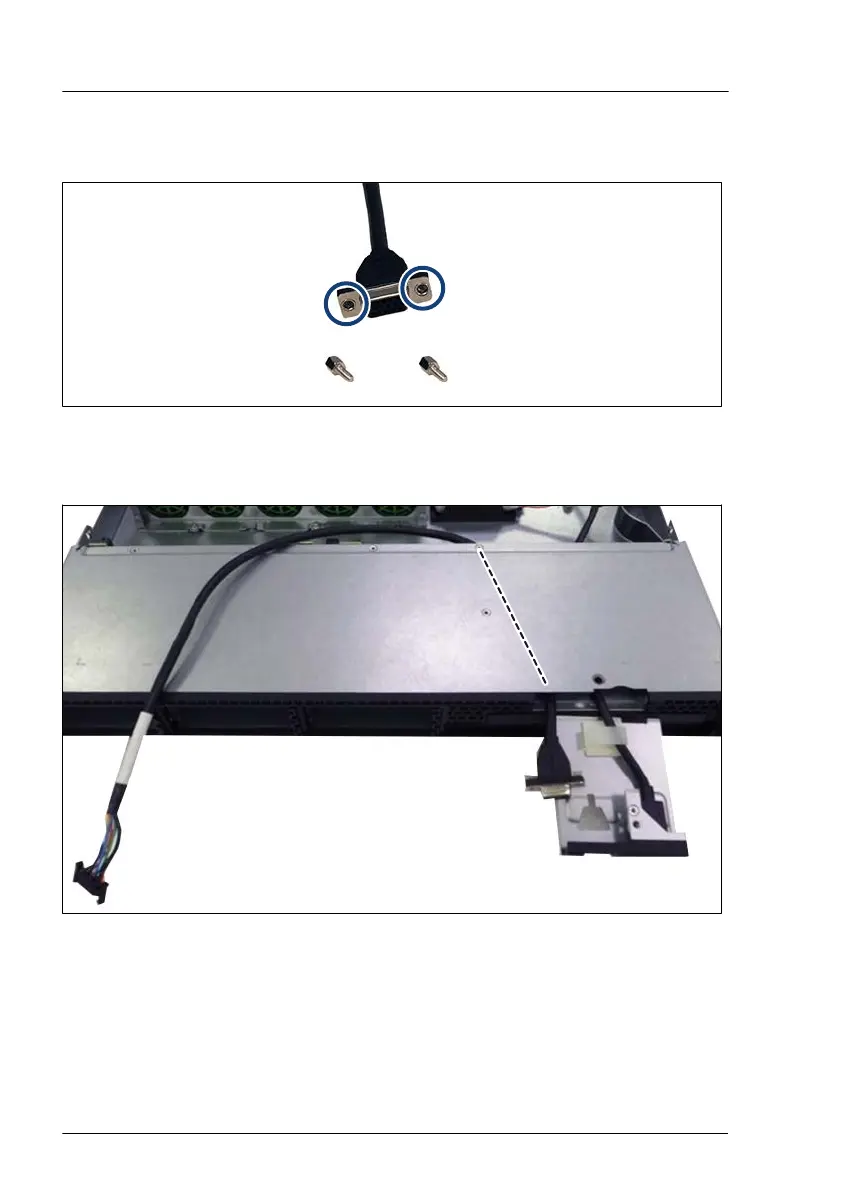

Figure 210: Removing the screws
▶
Remove the two screws from the front VGA connector (see circles).
Figure 211: Threading the front VGA cable through opening
▶
Thread the front VGA cable through the opening.
Front panel
266 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
