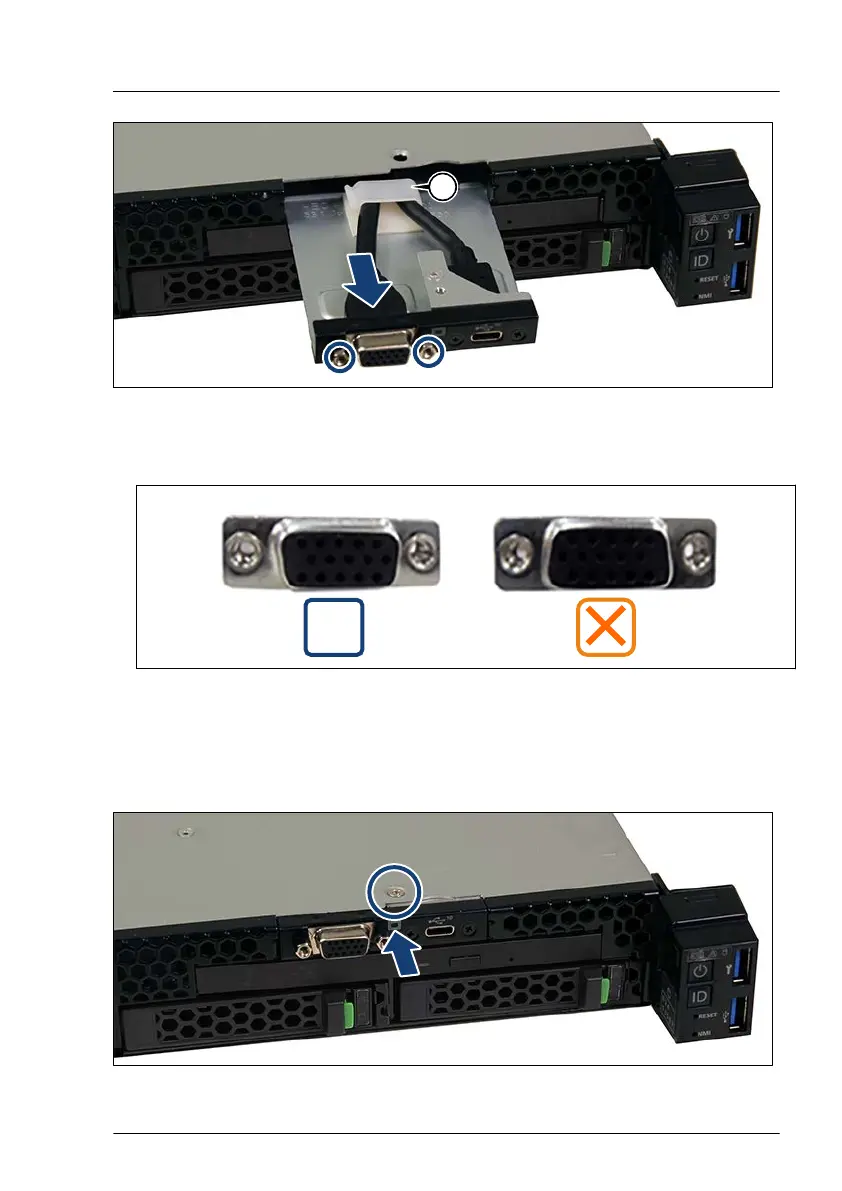

Figure 212: Installing the front VGA connector
▶
Push the front VGA connector into the recess in the front VGA module.
OK
▶
Fasten the front VGA connector with the two screws (see circles).
▶
Fasten the front VGA cable with the cable clamp (A).
Installing the front VGA module
Figure 213: Installing the front VGA module
