Push the front VGA module into place.
▶
Fasten the front VGA module with one screw (see circle).
Connecting the front VGA cable

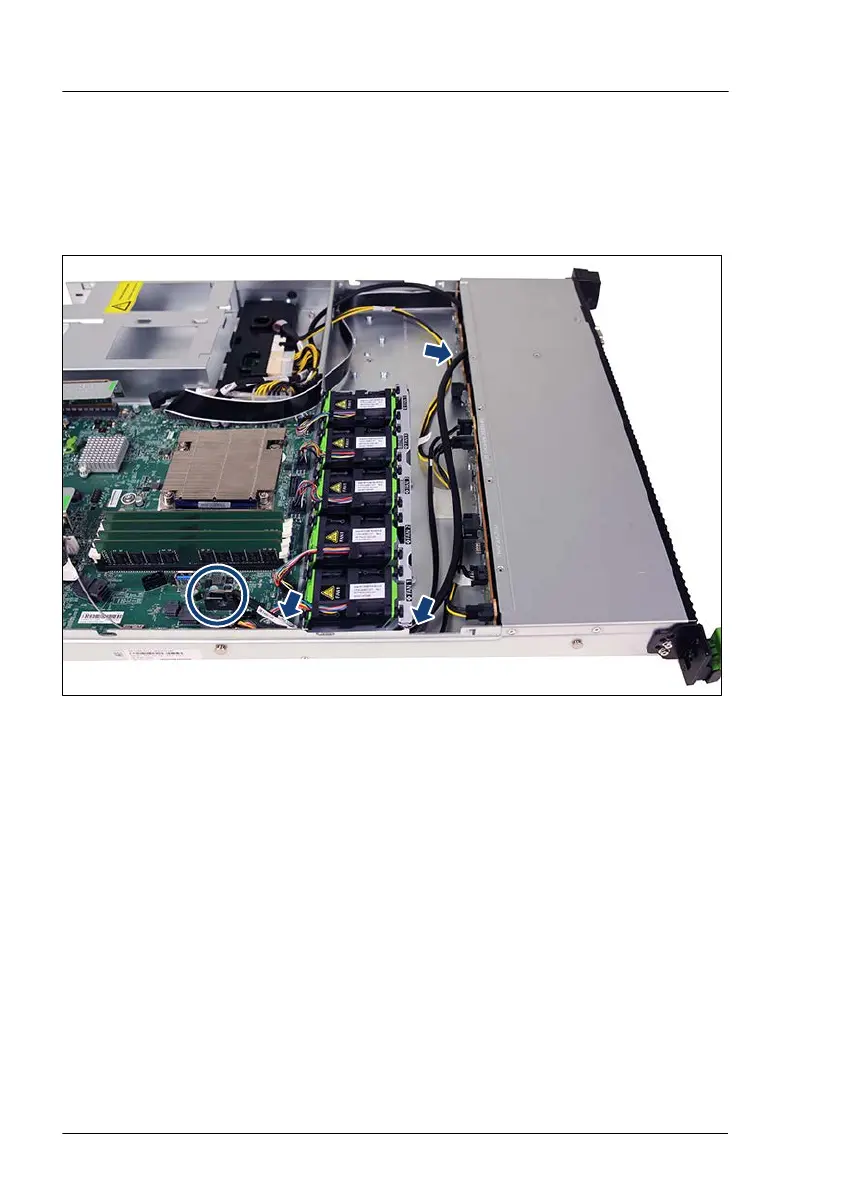

Figure 214: Connecting the front VGA cable
▶
Connect the front VGA cable to the system board connector "Front VGA"
(see circle).
Concluding steps
▶
"Installing the air duct" on page
66.
▶
"Reassembling" on page
53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
Front panel
268 Upgrade and Maintenance Manual RX1330 M5
