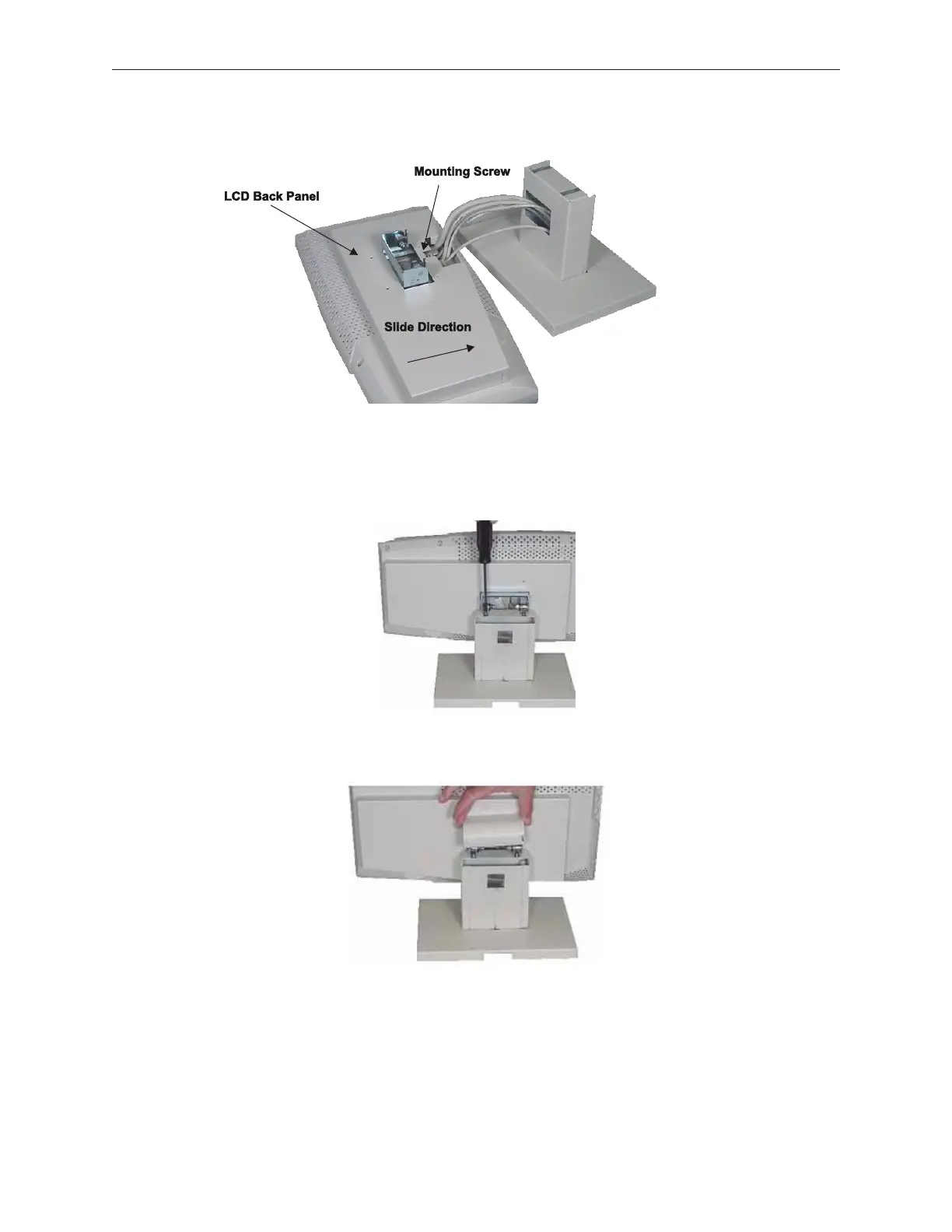

7. Slide back panel into place (2 taps) and secure with 1 screw.
8. Install LCD assembly on the stand, using four screws.
9. Install rotation mechanism cover (flat side on top) and secure with 2 screws.
5-68 Rev 3.0 90000291
TeamPoS 2000 MAINTENANCE MANUAL
