Fukuda DS-8500 - Connection of Main Unit and Super Unit

1-7
Chapter 1 Installation of the Unit System Construction
Connection of Main Unit and Super Unit

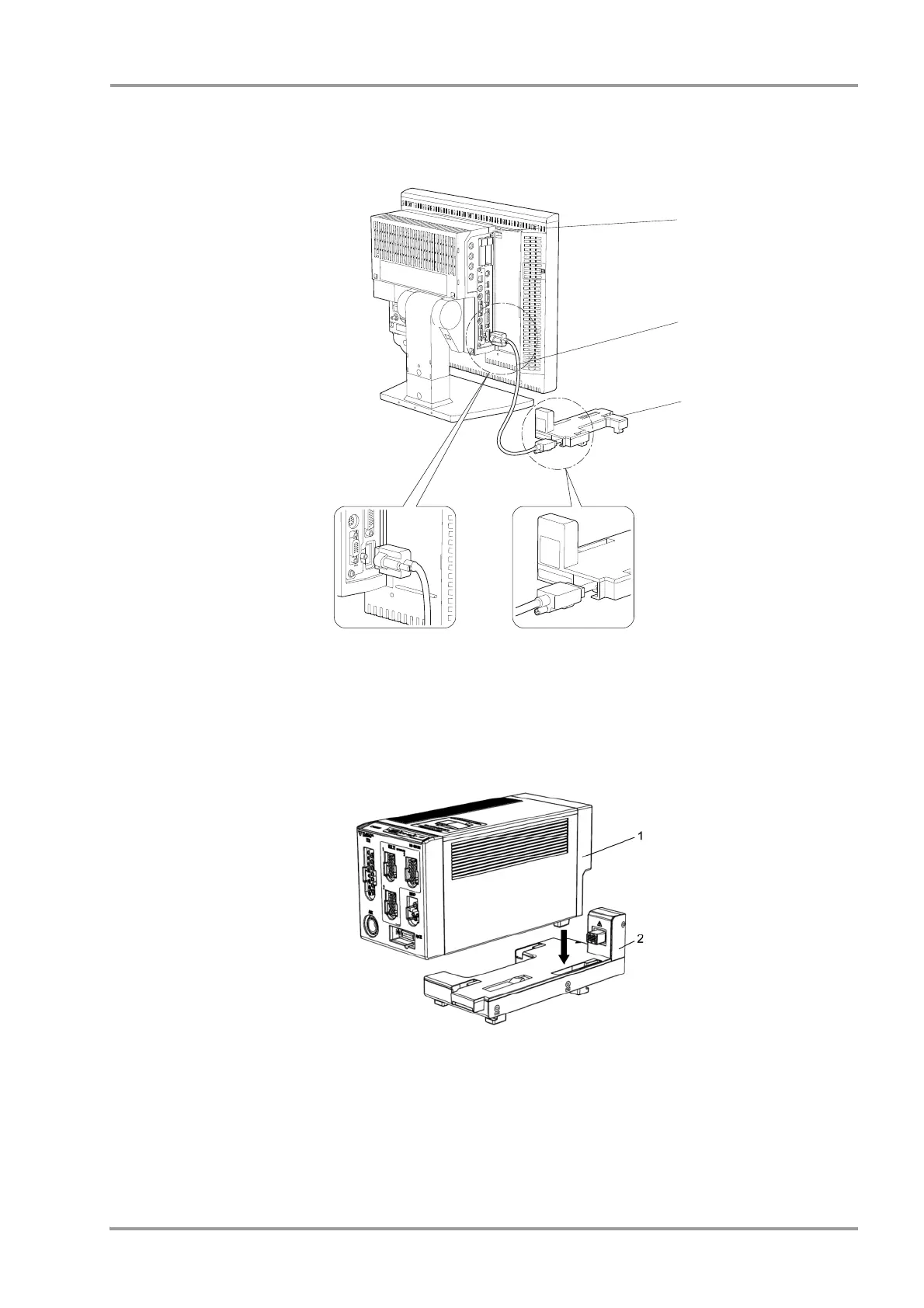

1Connect the main unit (DSC-8500 series) and HS Adapter (HSA-80) using the module connection cable (CJO-
08SSxx).
1 Main Unit (DSC-8500 series)
2 Module Connection Cable (CJO-08SSxx)
3 HS Adapter (HSA-80)
2Align the HS-8000 leg position with the slots on the HSA-80.
1 HS-8000
2 HSA-80
1
2
3
