4-5
Chapter 4 Connection to the External Devices Ventilator Measurement and Alarm Input
1 CJ-403RI-70PB
2 PB740/760
3PB840
Connection of Evita
When connecting the Evita 2 dura/Evita 4/ Evita XL ventilator, the serial port (RS-232C) of
the ventilator should be set as follows. Refer to the service representative of the ventilator
manufacturer.
Protocol: Medibus
Baud Rate: 19200bps
Data Bit: 8bit
Parity Bit: Even
Stop Bit: 1bit.

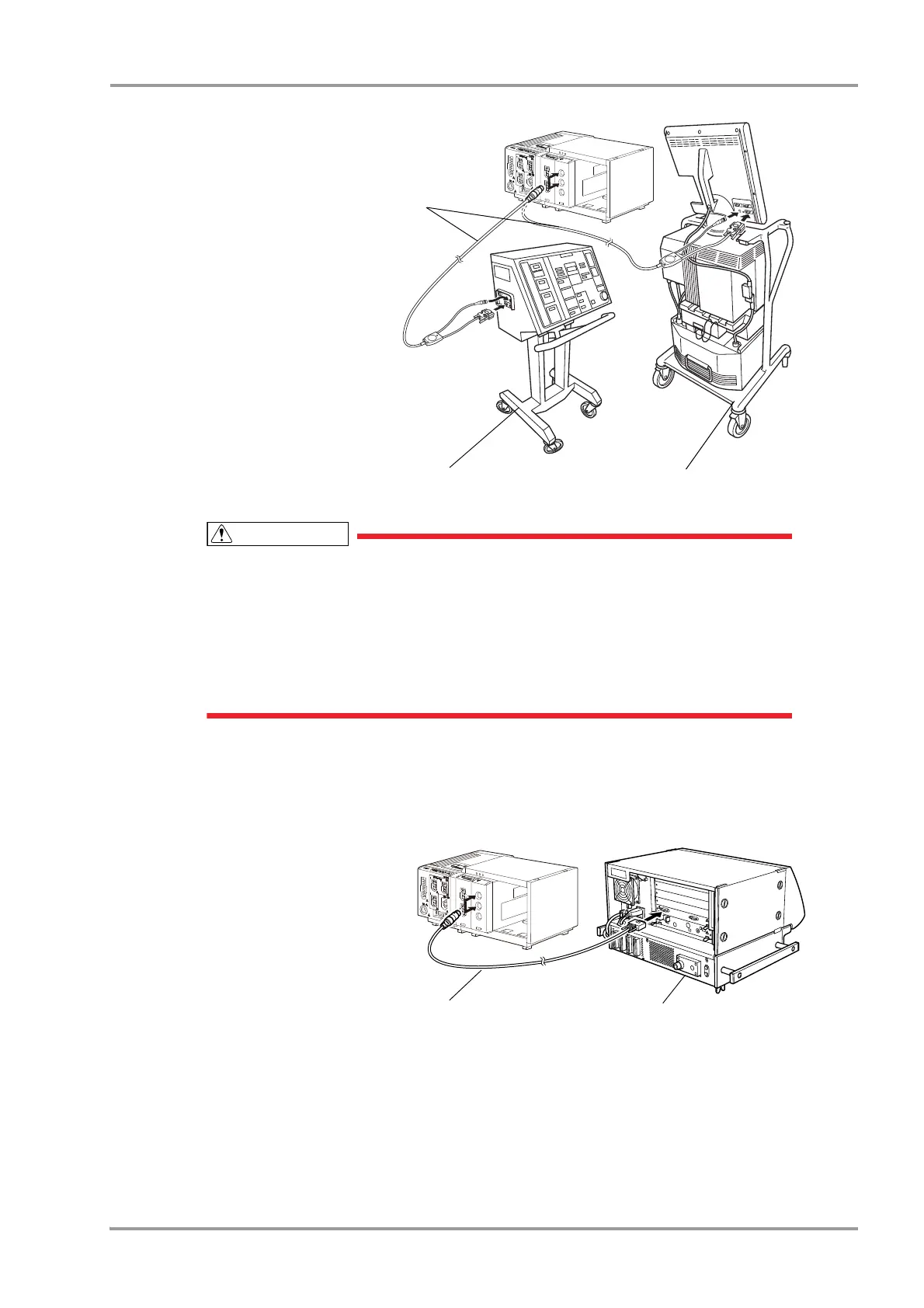

1Connect the Evita 2 dura/Evita 4/Evita XL to STATUS II connector on the DS-8500, or one of STATUS II
connector A or STATUS II connector B on the multiport module.
(The illustration is example of connection of Evita 2 dura and HP-800.)
1 CJ-402RI-70SVi
2 Evita 2 dura
To Next Page
