DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 138 Section 8-8 - Replacing Main Console
8-8-10 Replacement of the Rear Cover Mid Assy-T
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-8-10-1 Removal Procedure
8-8-10-2 Installation Procedure
Table 8-72 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 5 minutes No tools required
Cut resistant gloves
Knee Pad

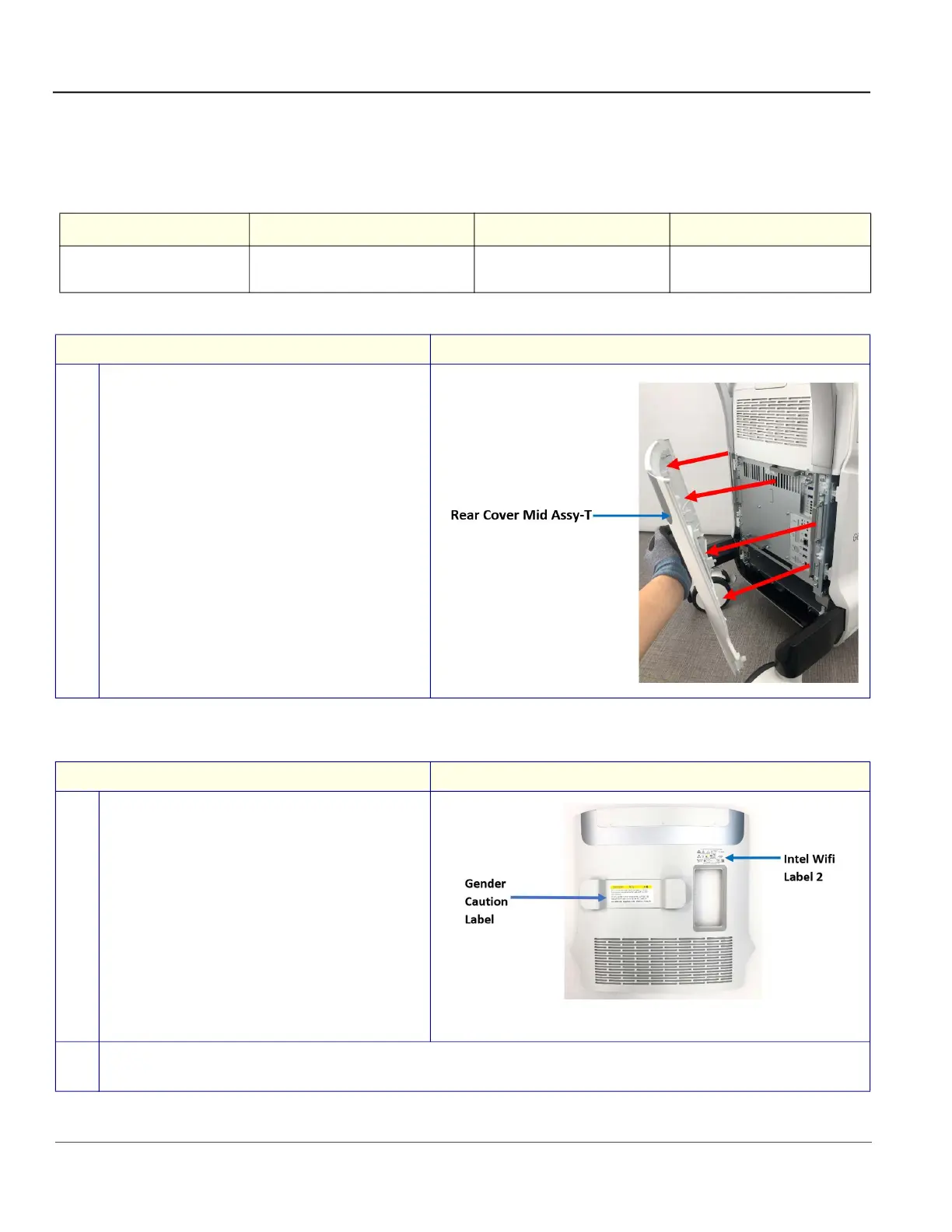

Step Corresponding graphic
1.
Pull the Rear Cover Mid Assy-T to remove from the
console.
Step Corresponding graphic
1.
Parts to be installed in reverse order of removal
NOTE : If the Gender Caution Label and the
Intel Wifi Label 2 are attached on the original
part. Makes sure to attach these labels on the
replaced part also.
2.
Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-12 on page 8-
223
