8 - 146 Section 8-8 - Replacing Main Console
8-8-18 Replacement of the Rear Cover Top L/R Set-U
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-8-18-1 Preparations
1.) Remove the T2 Side Cover L Assy as described in 8-8-7 "Replacement of the T2 Side Cover L
Assy" on page 8-135
2.) Remove the T2 Side Cover R Assy as described in 8-8-8 "Replacement of the T2 Side Cover R
Assy" on page 8-136
3.) Remove the Top cover Assy-T as described in 8-8-17 "Replacement of the Top Cover Assy-T" on
page 8-145
8-8-18-2 Removal Procedure
8-8-18-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)”
as described in Section 8-
12 on page 8-223
Table 8-80 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 5 minutes No tools required
Cut resistant gloves
Knee Pad

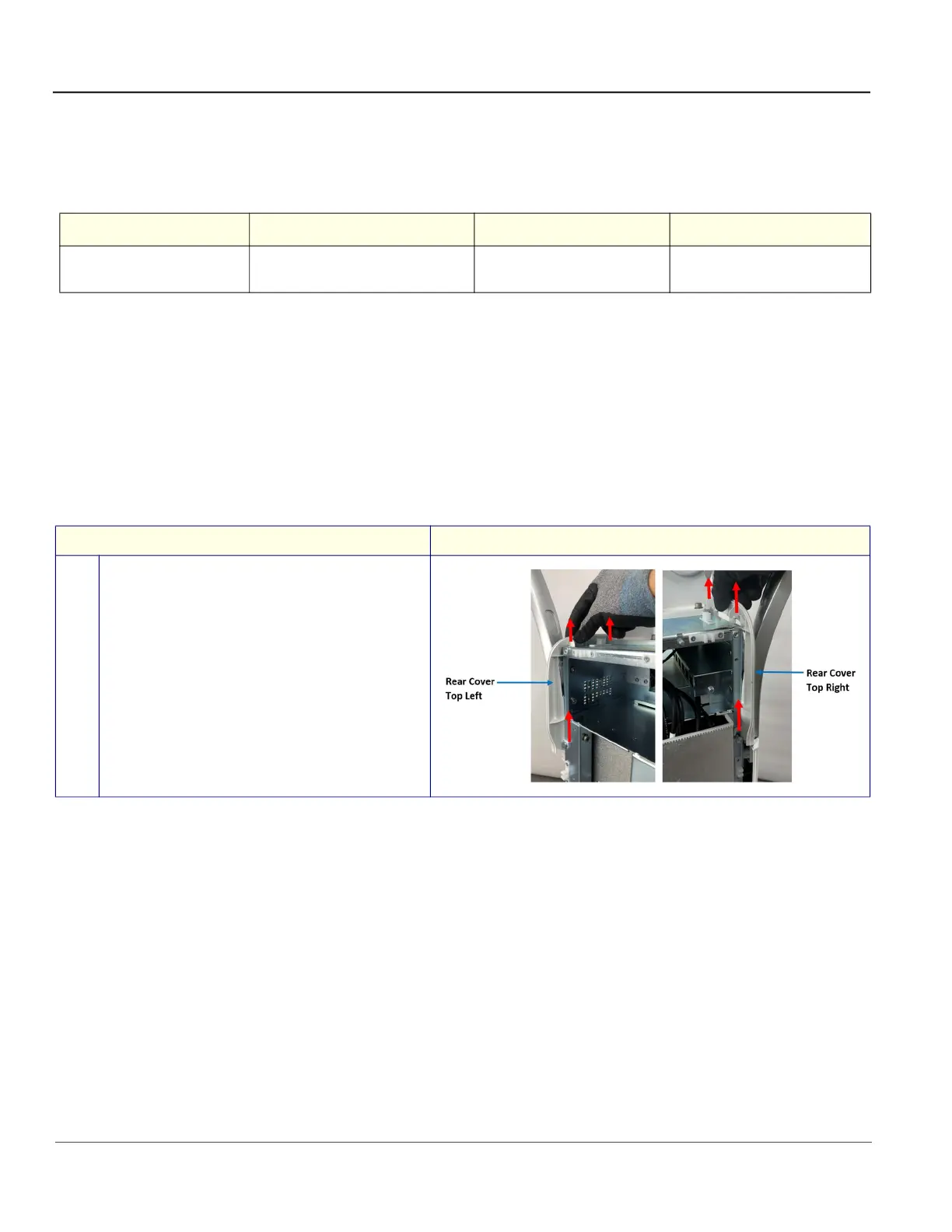

Step Corresponding graphic
1.
Pull the Rear Cover Top Left/Right to remove from
the console.
To Next Page
