DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-8 - Replacing Main Console 8 - 149
8-8-20-1 Removal Procedure
8-8-20-2 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

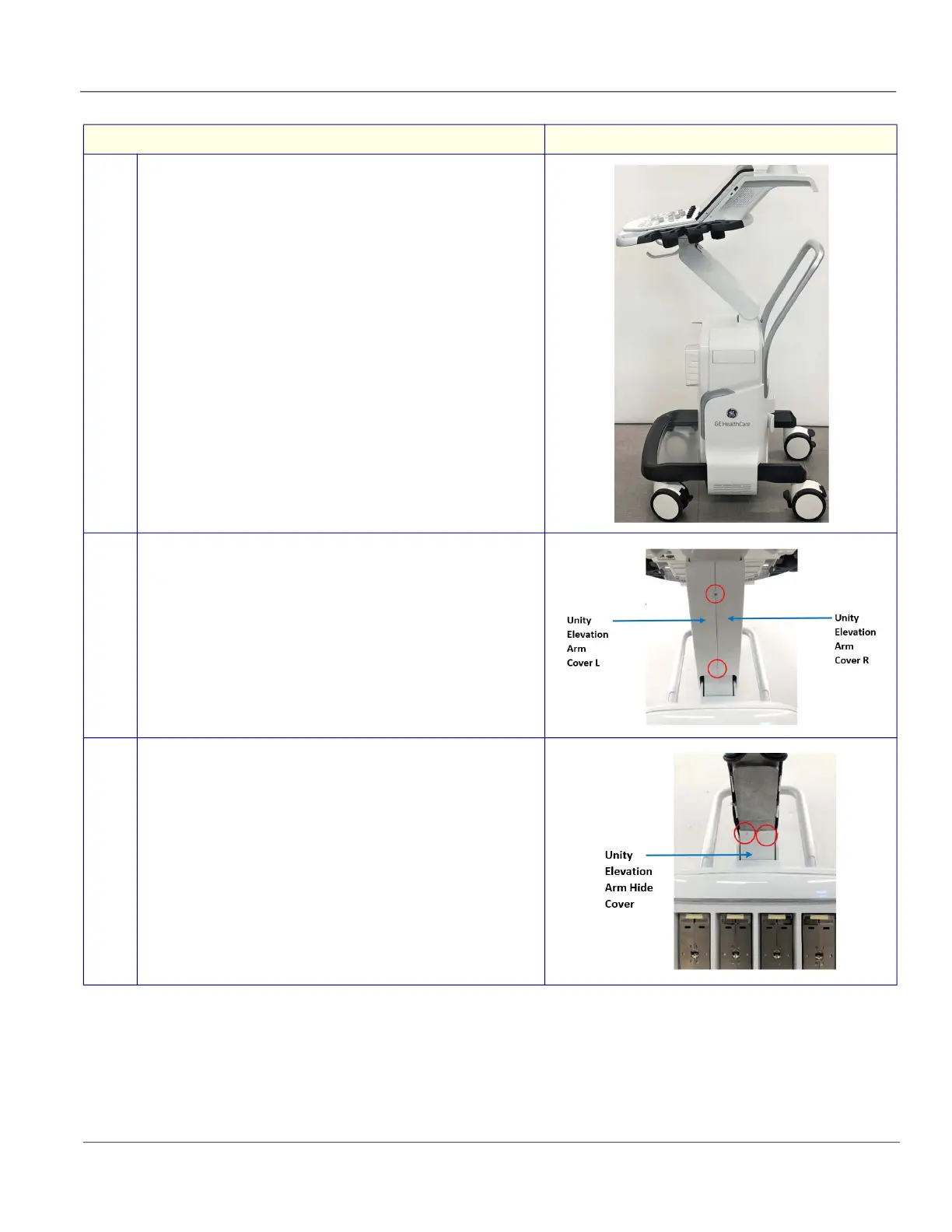

Step Corresponding graphic
1. Lift the elevation arm to its highest position.
2.
Unscrew 2 screws to remove the Unity Elevation Arm Cover L/R
from the console
3.
Unscrew 2 screws to remove the Unity Elevation Arm Hide Cover
from the console.
