DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-8 - Replacing Main Console 8 - 159
8-8-26 Replacement of the Unity Rear Top Fan Assy
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-8-26-1 Preparations
1.) Remove the T2 Side Cover R Assy as described in 8-8-8 "Replacement of the T2 Side Cover R
Assy" on page 8-136
2.) Remove the Rear Cover Mid Assy-T as described in 8-8-10 "Replacement of the Rear Cover Mid
Assy-T" on page 8-138
8-8-26-2 Removal Procedure
Table 8-88 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 10 minutes Phillips Screwdriver
Cut resistant gloves
Knee Pad

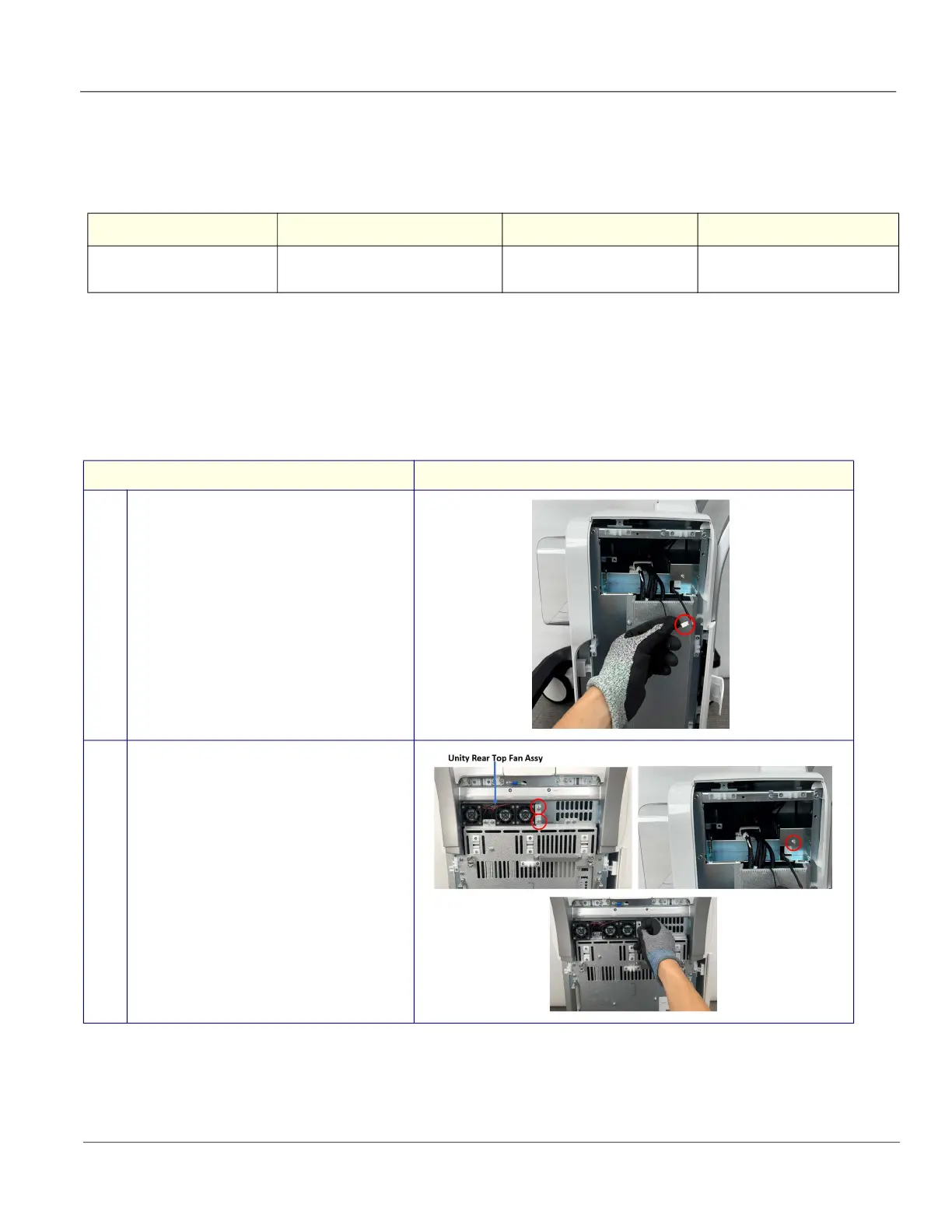

Step Corresponding graphic
1.
Disconnect the Fan Cable from the console.
2.
Unscrew 3 screws to remove the Unity Rear
Top Fan Assy from the console
To Next Page
