DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 160 Section 8-8 - Replacing Main Console
8-8-26-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

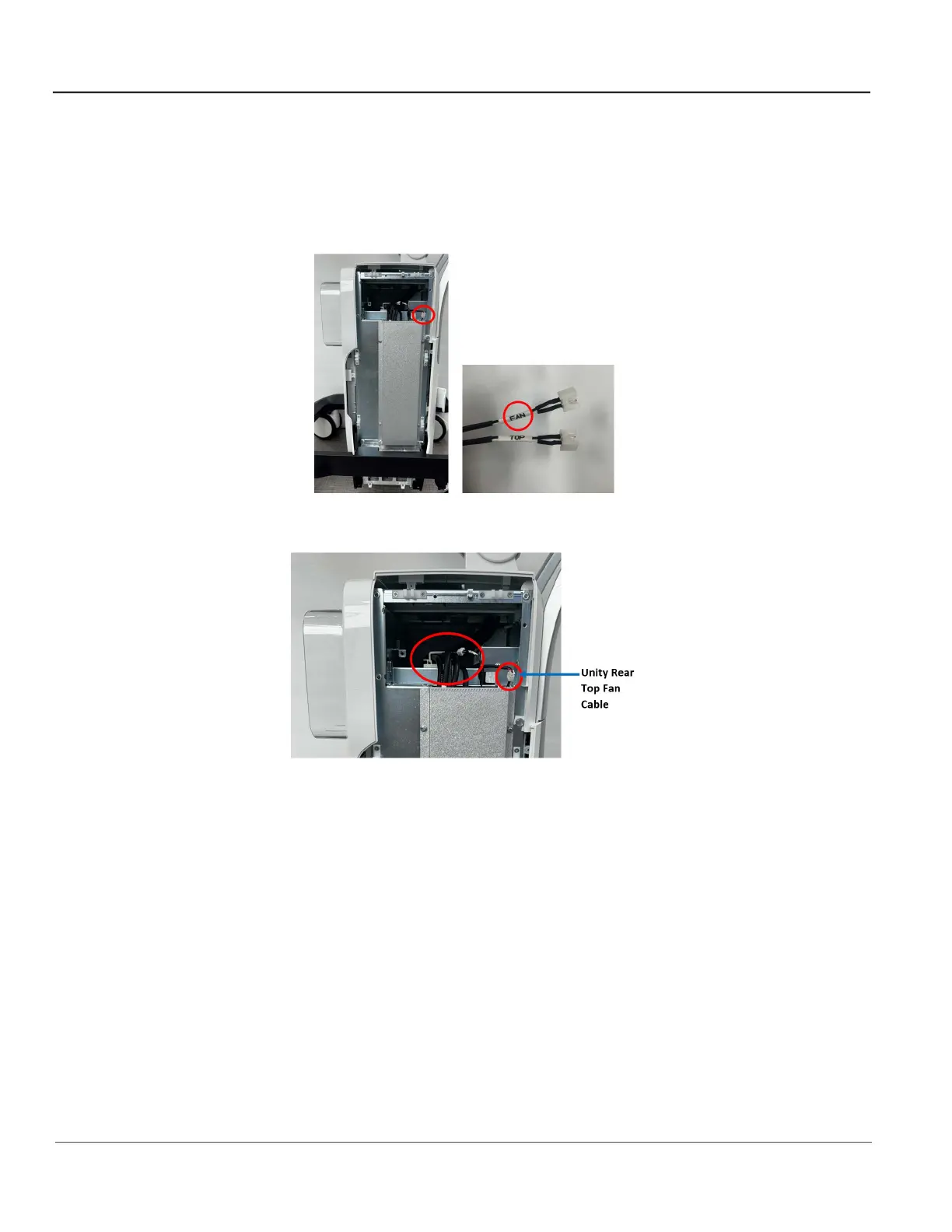

NOTE: The fan cables are labelled as “FAN” and “TOP”. Make sure the fan cable indicated as “FAN”
is connected to the Unity Rear Top Fan Cable.
NOTE: Clamp all the cables excluding Unity Rear Top Fan Cable.
