8-9-3-2 Removal Procedure
8-9-3-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
Steps Corresponding Graphic

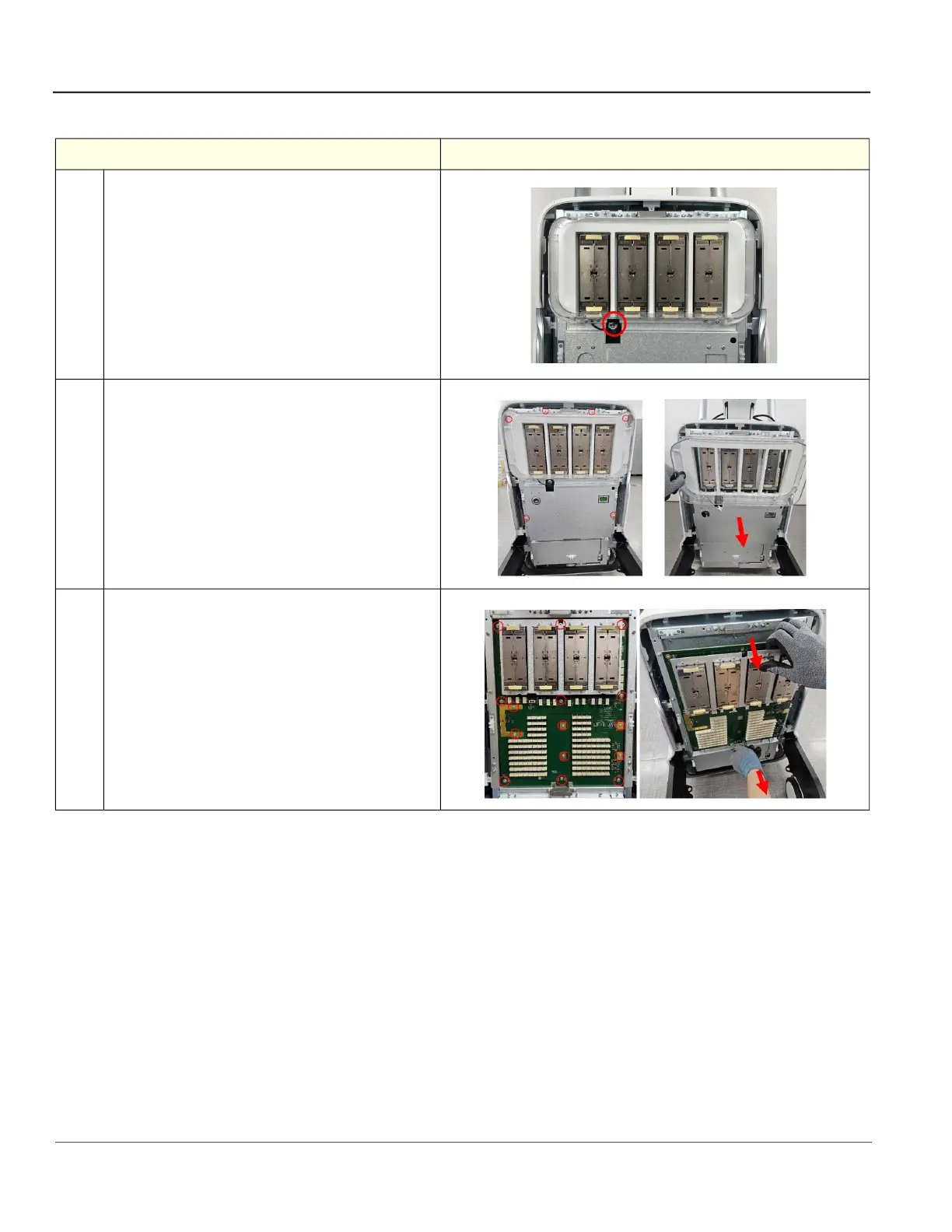

1. Push the button of Unity Protector Assy’s connector
and disconnect the Unity Protector Assy’s Connector
from the console.
2. Unscrew 6 screws to remove the Unity UCO-T Front
Cover Brkt.
3. Unscrew 15 screws to remove the UCO-T from the
console.
Note:
If the UECG Assy was installed, remove the UECG
Assy as described in 8-11-18 "Replacement of the
UECG Assy" on page 8-208. If the U-DCWD Set was
installed, remove the U-DCWD Set as described in 8-
11-17 "Replacement of the U-DCWD Set" on page 8-
206
