8 - 170 Section 8-10 - Replacing Back End Parts
8-10-3-2 Removal Procedure
Steps Corresponding Graphic

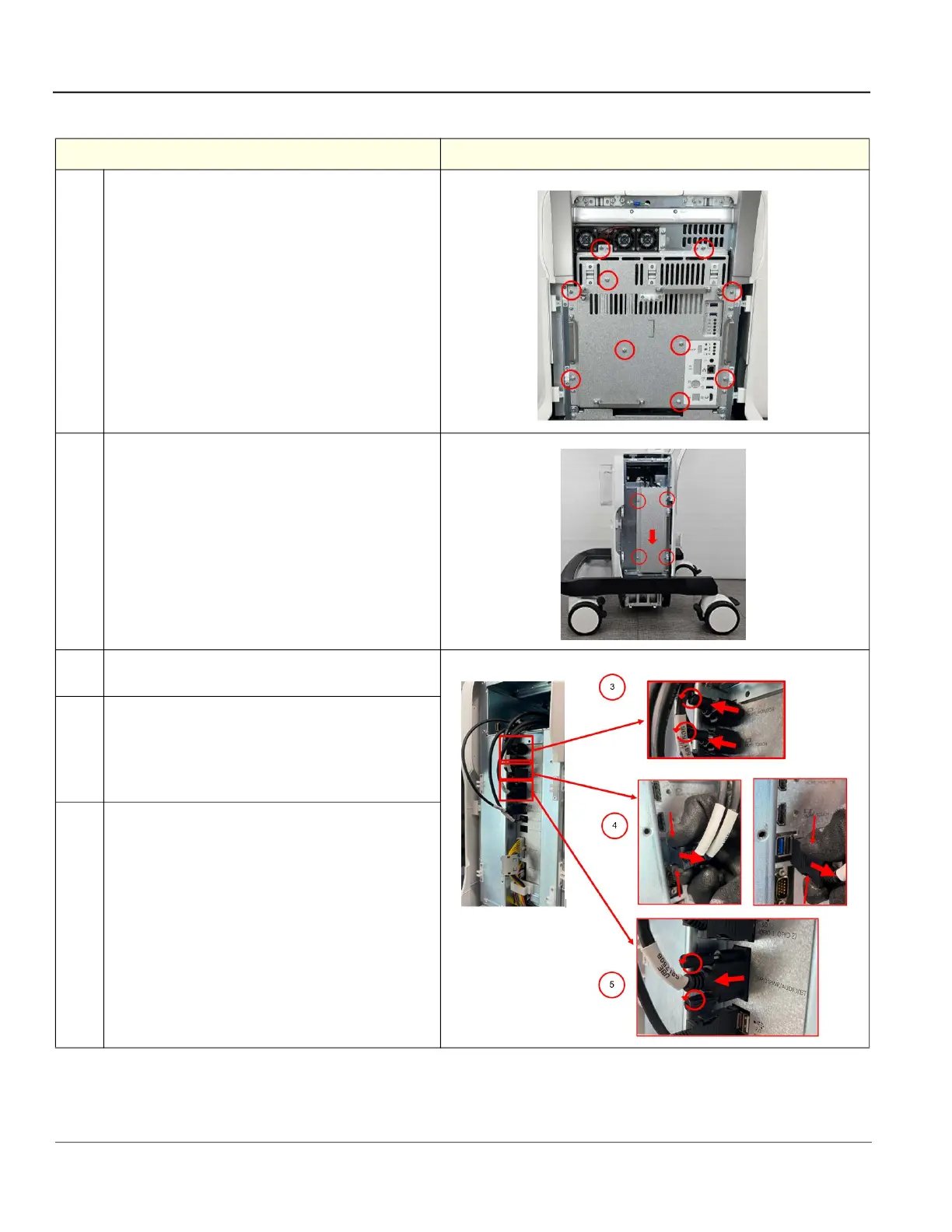

1.
Unscrew 10 screws to remove the Unity Rear
Shield Brkt from the console.
Note: If the WLAN-T was installed, remove the
WLAN-T as described in 8-11-13 "Replacement
of the WLAN-T and WLAN USB A Cable" on
page 8-199
Note: If the U-WIFI Module Assy-T was installed,
remove the U-WIFI Module Assy-T as described in
8-
11-21 "Replacement of the U-WIFI Module
Assy" on page 8-214
2. Unscrew 4 screws to remove the Unity Cable Cover
Brkt.
3. Rotate the stud of HDMI cable(Main Monitor & Touch
panel) counterclockwise and disconnect from UBE-T
4. Push the side of USB connector(OPIO1, OPIO2) and
disconnect from UBE-T.
NOTE: The connector can be inserted to any of
these two USB ports.
5. Rotate the stud of D-sub connector counterclockwise
and disconnect from UBE-T.
