GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-10 - Replacing Back End Parts 8 - 171

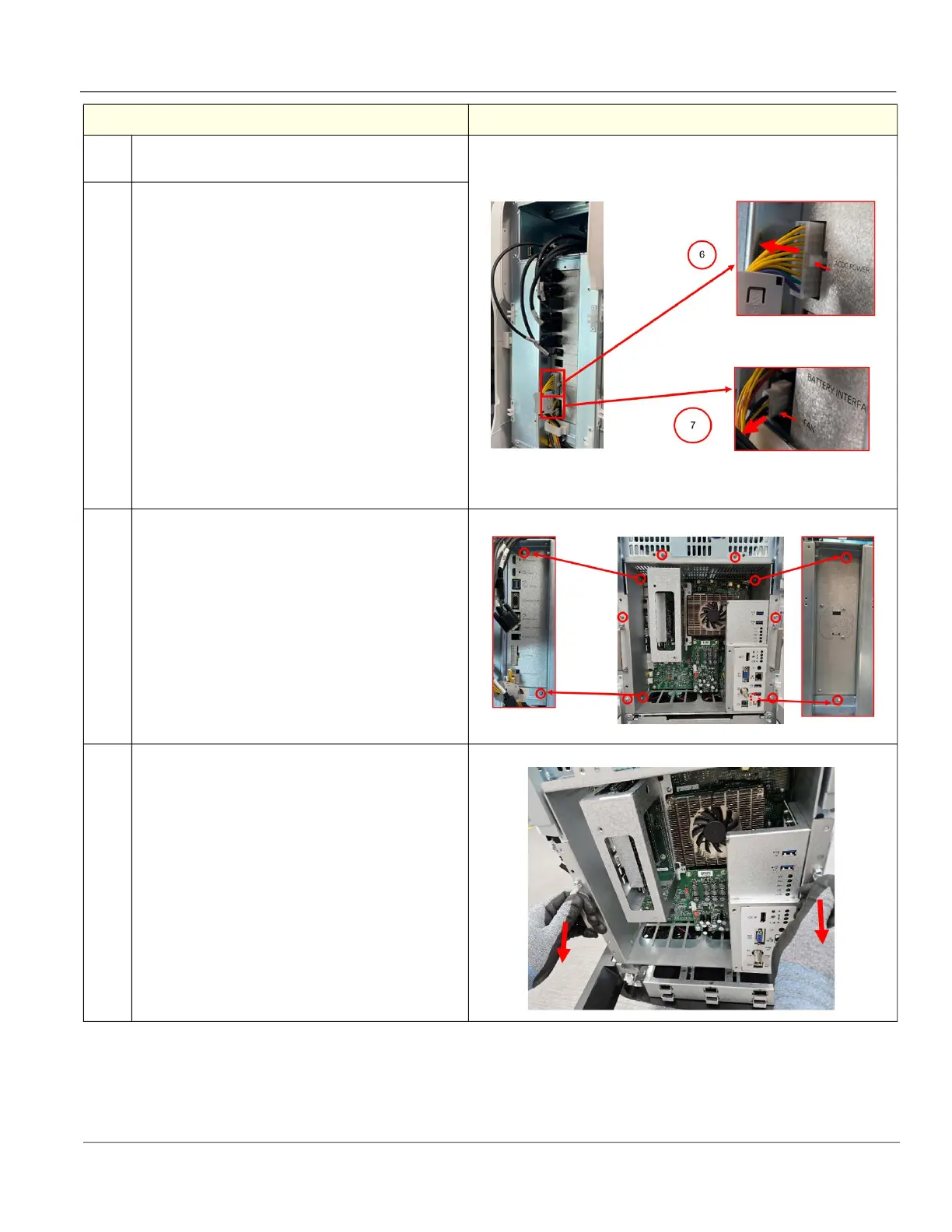

6. Push the button of ACDC OUTPUT Cable connector
and disconnect from the UBE-T.
7. Push the button of Fan cable’s connector and
disconnect from the UBE-T.
Note: If the BW printer Option Cable Set-U was installed,
remove the BW printer Option Cable Set-U as described
8-
11-15 "Replacement of the BW printer Option
Cable Set-U" on page 8-201
Note: If the Battery Option Cable Set-U, remove the Battery
Option Cable Set-U as described in
8-11-16
"Replacement of the Battery Option Cable Set-
U" on page 8-204
Note: If the VNAV Option Cable Set-U, remove the VNAV
Option Cable Set-U as described in Section
8-11-19
"Replacement of the VNAV Option Cable Set-U"
on page 8-210
8. Unscrew 10 screws to remove the UBE-T module.
Note: If the U-WIFI Module Assy-T was installed,
remove the U-WIFI Module Assy-T as described in
8-
11-21 "Replacement of the U-WIFI Module Assy"
on page 8-214
9. Pull out the UBE module and remove from the
console.
Steps Corresponding Graphic
To Next Page
