DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 172 Section 8-10 - Replacing Back End Parts
10. Unscrew 2 screws to remove the UEPP module from
the UBE-T.
11. If UMC-T was installed, unscrew 4 screws to remove
the UMC-T from the UBE-T. And then unscrew 4
studs.
12. Unscrew 4 screws to remove the GPU Module from
the UBE-T.
13. Disconnect the SOM FAN connector from the UBE-T
and unscrew 5 screws to remove the SOM.

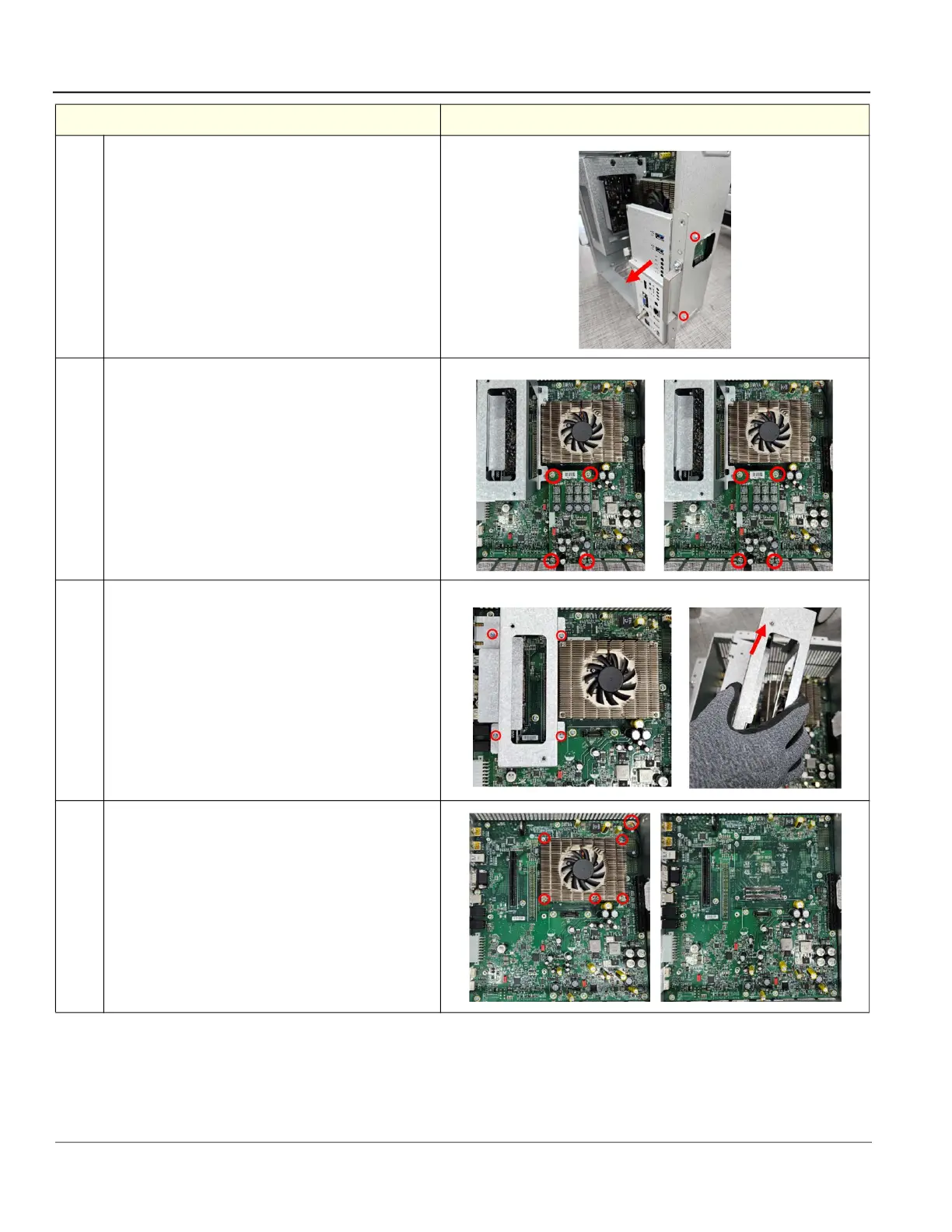

Steps Corresponding Graphic
