GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-10 - Replacing Back End Parts 8 - 173
8-10-3-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
NOTE: When you assemble SOM, Check UBE-T and SOM Connection.
NOTE: The UBE To OPIO HUB USB 3.0 Cable can be inserted to any of two USB ports (UBE-T).

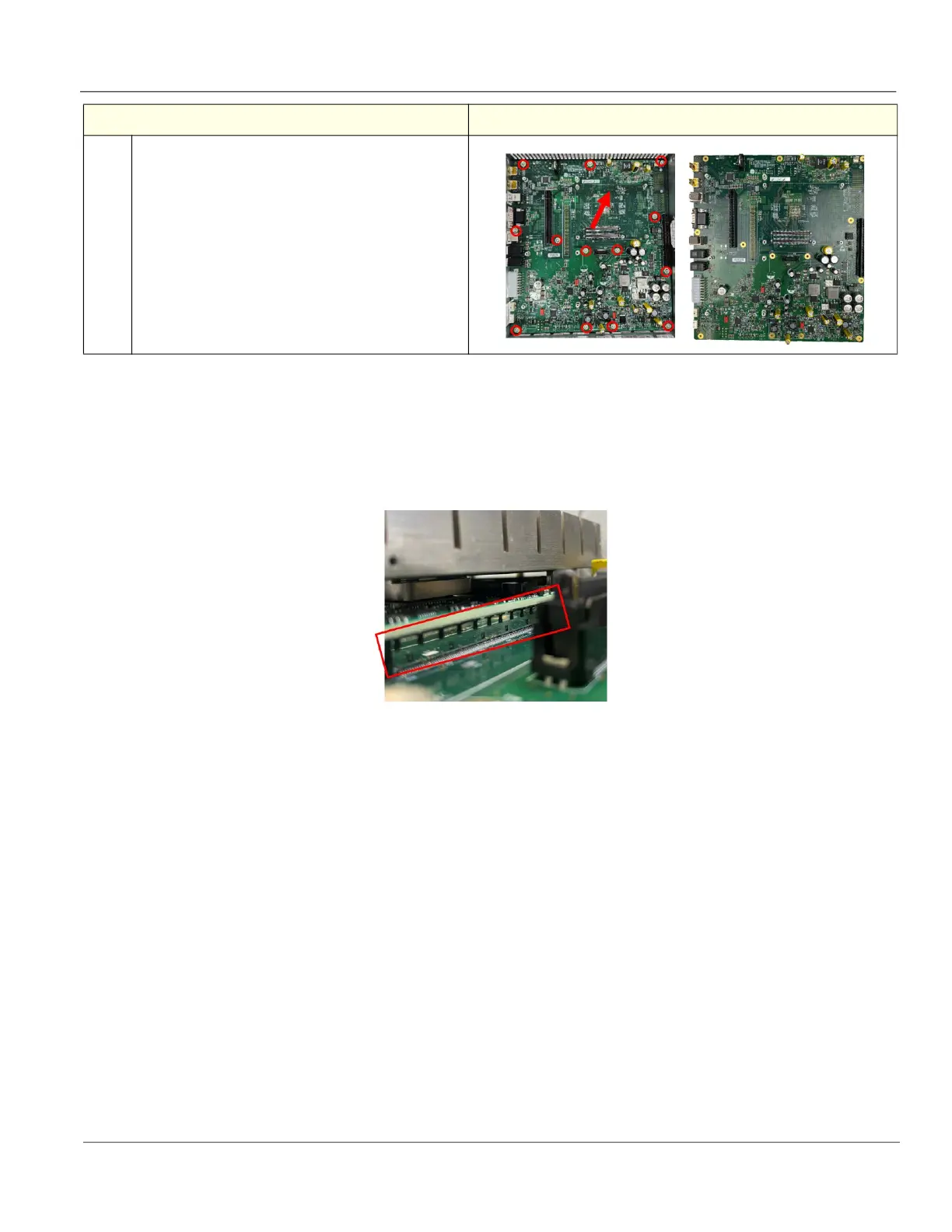

14. Unscrew 13 screws to remove the UBE Board Set-T
and pull UBE Board Set-T from the brkt.
Steps Corresponding Graphic
To Next Page
